PK-21N30PQ
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 20 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 3kHz | Input Type | DC |
| Voltage Range | 1.5 ~ 30V | Operating Mode | Continuous |
| Voltage Rating | 12VDC | Current - Output | 12mA |
| Driver Circuitry | Indicator, Internally Driven | Voltage - Supply | 1.5 ~ 30V |
| Current Rating (Max) | 12mA | Sound Pressure Level (SPL) | 80dB @ 12V, 30cm |
Mechanical

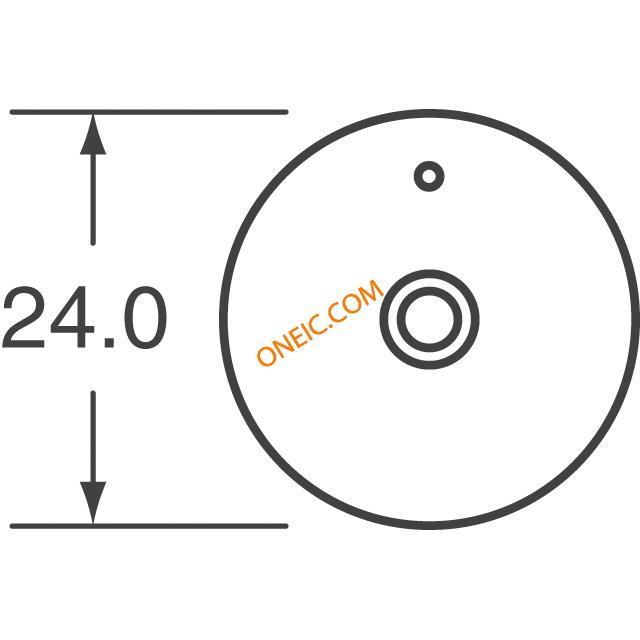

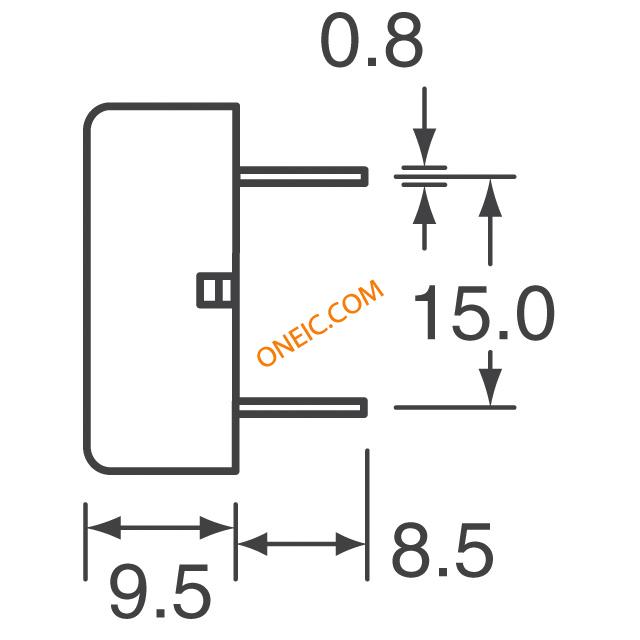

| Size | Circular - 24.00mm Dia x 9.70mm H | Packaging | Bulk |
| Termination | PC Pins | Mounting Type | Through Hole |
| Size / Dimension | Circular - 24.00mm Dia x 9.70mm H | ||
Product Info
| Series | Sonalert® | Washable | No |
| Technology | Piezo | Other Specifications | 80dB @ 12V, 30cm |
Environmental
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- PK-21N30PQ
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
