PSR-13N08A-JQ
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Impedance | 8 Ohm | Power - Max | 0.3W |
| Power (Watts) | 0.25W | Power - Rated | 0.25W |
| Frequency Range | 1.8kHz ~ 7kHz | Impedance (Max) (Zzt) | 8 Ohm |
| Sound Pressure Level (SPL) | 75dB | ||
Mechanical

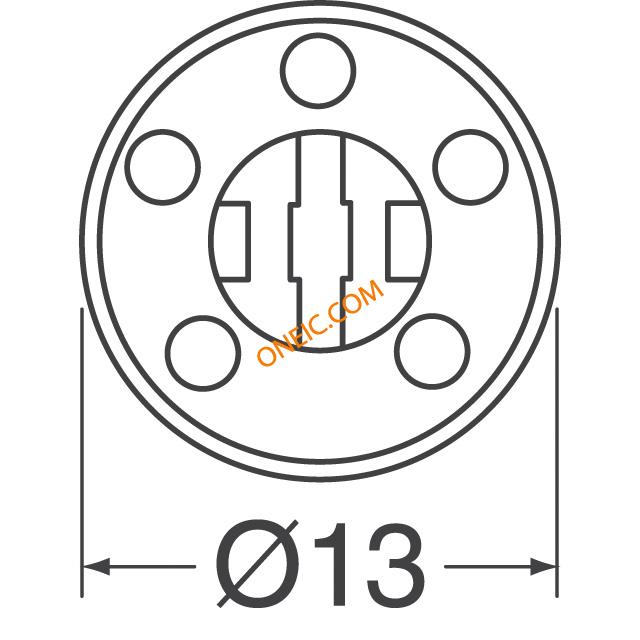

| Size | 13.00mm Dia | Shape | Round |

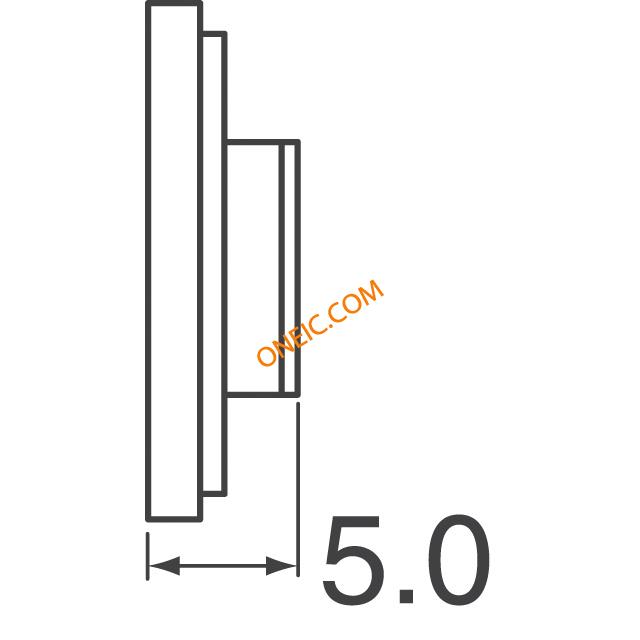

| Height | 5.00mm | Termination | Solder Pads |
| Material - Cone | PET | Size / Dimension | 13.00mm Dia |
| Material - Magnet | Ferrite | ||
Product Info
| Type | Magnetic | Other Specifications | 75dB |
