PSR-29F08S02-JQ
| Manufacturer | |
| Description | SPEAKER 8 OHM .25W 29MM ROUND SPEAKER; MYLAR- PLASTIC FRAME; 8 OHM; 0.25 WATT; 84 DB; 800 HZ; 29X9 MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Impedance | 8 Ohm | Power - Max | 0.5W |
| Power (Watts) | 0.25W | Power - Rated | 0.25W |
| Frequency Range | 800Hz ~ 4.5kHz | Impedance (Max) (Zzt) | 8 Ohm |
| Sound Pressure Level (SPL) | 84dB | ||
Mechanical

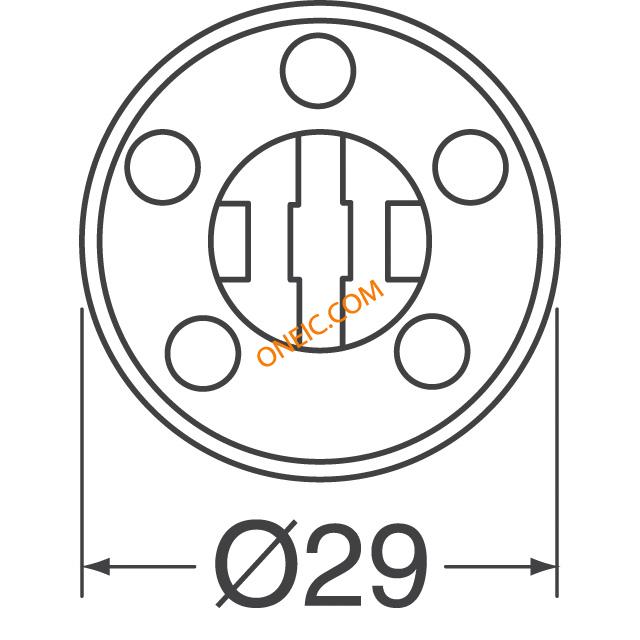

| Size | 29.00mm Dia | Shape | Round |

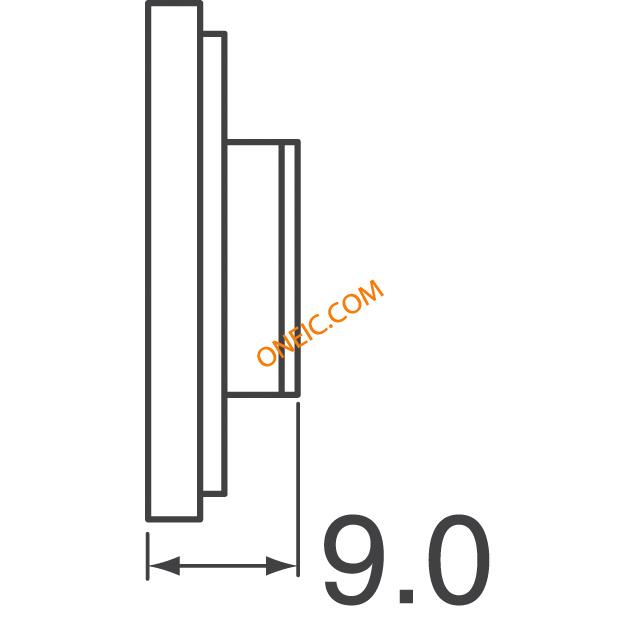

| Height | 9.00mm | Termination | Solder Pads |
| Material - Cone | PET | Size / Dimension | 29.00mm Dia |
| Material - Magnet | Ferrite | ||
Product Info
| Type | Magnetic | Other Specifications | 84dB |
Documents & Media
PDF Document
