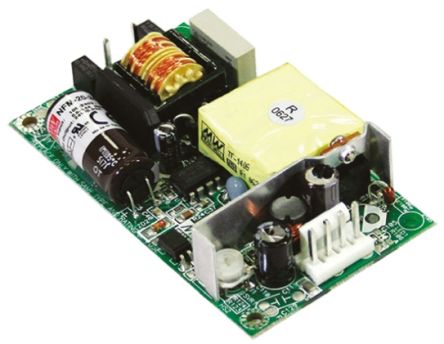

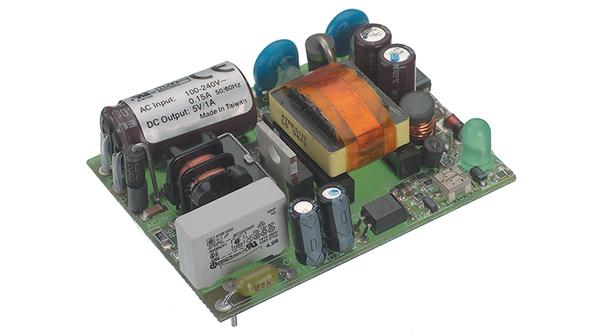

NFM-20-24

点击放大查看

NFM-20-24

Manufacturer
MEAN WELL Enterprises Co., Ltd.
Description
Linear and Switching Power Supplies 22.08W 24V 0.92A Power Supply Switch Mode PCB Mount 24V Switching Power Supplies 22.08W 24V 0.92A AC/DC Power Supply Single-OUT 24V 0.92A 22.08W 7-Pin Power Supply; AC-DC; 24V@0.92A; 85-264V In; Open Frame; PCB Mount; Medical; NFM Series Pwr sup.unit: pulse; 22.08W; 120÷370VDC; 85÷264VAC; Outputs:1 NFM-20-24 from Mean Well, 20 Watt, Single Output Switched-mode power supply 1 output, NFM-20-24, Mean Well Mean Well 22.08W 单输出 嵌入式开关模式电源 SMPS , 120 → 370 V dc, 85 → 264 V ac输入, 24V dc输出, 920mA输出, 84%效能
Category
电源解决方案AC-DC转换器医疗级AC-DC转换器
对参数有疑问？问 AI 助手

商业参数

产品Switching Supplies产品类别Switching Power Supplies
工厂包装数量105

合规参数

RoHSRoHS Compliant防护类型overload, overheating, voltage growth, short-circuit

电气参数

噪声240mV Pk-Pk输出端24VDC@0.92A
纹波240 mVpp降额maintains 60% of power at +60 °C
频率47...440 Hz隔离Class I
操作方式Switching效率84%
最大功率20 Wattswith airflow输出功率22 W
功率（瓦）84%额定功率22.08W
额定输出功率22 W额定电压120 → 370 V dc, 85 → 264 V ac
电源调整率±0.5%负载调整率±0.5%
输出电流0.92A供电电压120...370V DC, 85...264V AC
输出数量1供电类型open
交流输入电压85...264 VAC输出电流10.92 A
击穿电压4000 VAC最大额定电流920mA
最小输入电压24 VDC电池供电电压120...370 VDC
电压负载调整率±0.5%输出电流/通道0.92 A

机械参数

尺寸89 x 51 x 19.3 mm深度19.3mm
宽度51mm高度19.3 mm
长度89mm重量0.09kg
本体尺寸89 x 51 x 19.3mm安装类型PCB
安装样式Chassis冷却的封装Open Frame
包装数量开放式面板安装类型Open Frame
主要材料AC-DC尺寸/外形89 mm L x 51 mm W

产品信息

类型Medical系列NFM-20
产品特性3-Years Warranty, High Reliability, 100% Full Load Burn-In Test, Ultra-Miniature Size, Light Weight, Short Circuit Protections, Overload Protections, Over Voltage Protections, Over Temperature Protections功能Y
制造商全称NFM Series库存状态233
配置Open-Frame电气寿命THT
单元数量1

环境参数

冷却类型20 Wattsconvection cooled工作寿命487.8kh
工作温度-20°C最高温度限值+60°C
