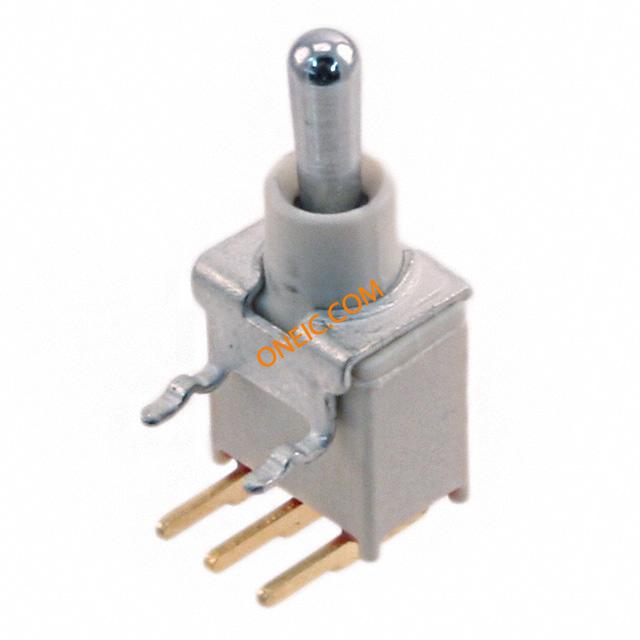

ET05MD1ABE
| Manufacturer | |
| Description | Switch Toggle Mom OFF Mom SPDT Round Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Toggle SWITCH TOGGLE SPDT 0.4VA 20V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Lead Time | 56 Days |
| Unit Pack | 1 | Subcategory | Switch Toggle |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPDT | Power - Rated | 0.4@20VAC 20VDC VA |
| Voltage Rating | 20 V | Switch Function | Mom-Off-Mom |
| Voltage - Rated AC | 20V VAC | Current Rating (Max) | 0.4VA (AC/DC) |
| Voltage - Input (Min) | 20 | Switch Function/Rating | Mom OFF Mom |
| Voltage - DC Spark Over (Nom) | 20V VDC | ||
Mechanical
| Height | 6.32 mm | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | PC Mount with Bracket |

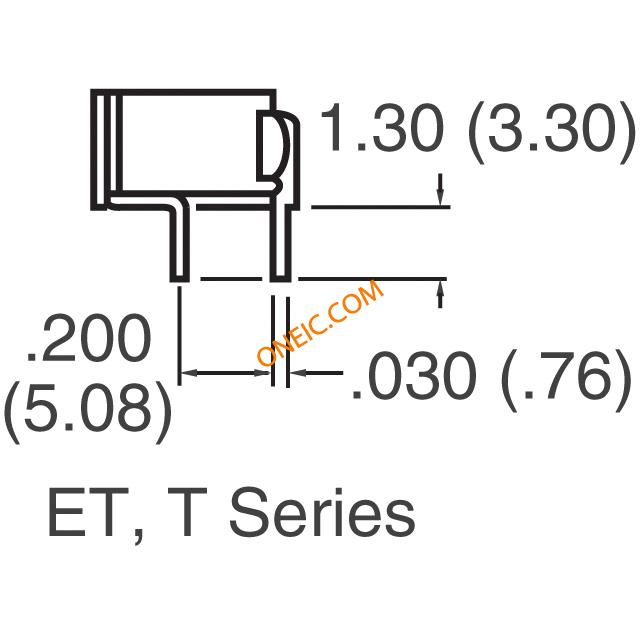

| Terminal Type | PC Pins | Bushing Thread | Unthreaded |
| Contact Finish | Gold/Nickel | Mounting Style | Through Hole |

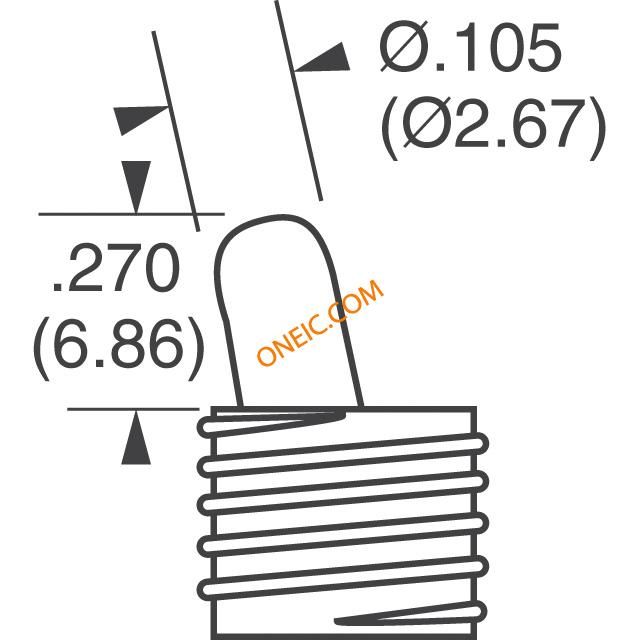

| Actuator Length | 6.10mm | Contact Material | Copper Alloy |
| Length - Overall | 8.13 mm | Actuator Material | Brass, Chrome Plated |
| Termination Style | PC Pin | Actuator Style/Size | Round Toggle |
| Switch Actuation Level | SPDT | ||
Product Info
| Type | Sealed Sub-Miniature | Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Electrical Life | 30,000 Cycles |
| For Use With/Related Products | ET05MD1AKE | ||
Environmental
| Ingress Protection | IP57 - Dust Protected, Waterproof | Operating Temperature | -30 to 85 °C |
| Operating Temperature - Junction | 85C | ||
