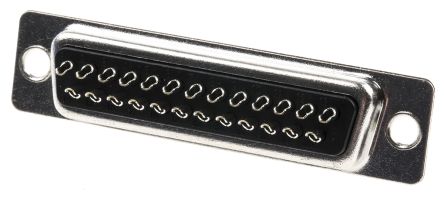

MHDB25SS
| Category |
对参数有疑问？问 AI 助手
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250 V | Number of Poles | 25 |
| Current Rating (Max) | 5A | ||
Mechanical
| Depth | 10.7mm | Pitch | 2.77mm |
| Width | 12.55mm | Length | 53.03mm |
| Shell Size | B | Orientation | 直 |
| Termination | Solder Cup / Solder lug | Mounting Type | Straight |
| Cable Diameter | 0.95...1.05 mm | Connector Type | 母座 |
| Contact Finish | Gold over Nickel | Contact Material | Brass |
| Housing Material | Steel | Size / Dimension | 53.03 x 12.55 x 10.7mm |
| Color - Connectors | black | Number of Contacts | 25 |
| 1st Connector Gender | Female | Material - Insulation | PBT glass-fibre-reinforced |
| Outside Pipe Diameter (Max) | 1.05 | ||
Product Info
| Gender | Female | Series | MHDB |
Environmental
| Operating Temperature | +105°C | ||
