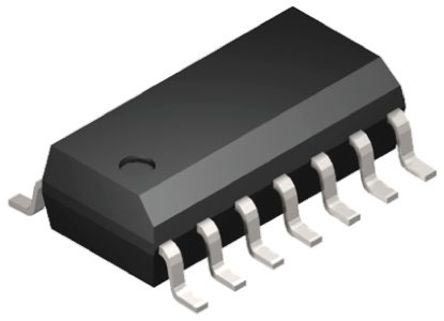

点击放大查看
MCP3204-BI/SL
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 57 | Unit Pack | 57 |
| Other Names | MCP3204BISL | Product Category | Analog to Digital Converters - ADC |
| Standard Package | Rail / Tube | Factory Pack Quantity | 57 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Channels | 4 | Interface | Serial (4-Wire, SPI) |
| Linearity | �1LSB | Input Type | Voltage |
| Resolution | 12 Bit | Input Signal | Pseudo Differential, Single Ended |
| INL/DNL (LSB) | ±1LSB | Power - Input | Single |
| Data Interface | Serial, SPI™ | Input Polarity | Unipolar |
| Number of Bits | 12 | Data Rate (Max) | 100 KSPs |
| Voltage - Rated | 5 | Current - Output | :320µA |
| Voltage - Supply | 2.7 V to 5.5 V | Power Supply Type | Single |
| Resolution (Bits) | :12bit | Voltage Reference | External |
| Number of Channels | 4 | Number of Elements | 1 |
| Sampling Frequency | 100 ksps | Number of ADCs / DACs | 1 |
| Voltage - Input (Min) | 5.5V | Voltage Supply Source | Single Supply |
| Voltage Supply - Internal | :2.7V to 5.5V | Sampling Rate (Per Second) | 100ksps |
| Differential - Input:Output | Yes | Voltage - Supply Span (Typ) | Not Required V |
| Voltage - DC Spark Over (Nom) | 2.7V | S/N Ratio, ADCs / DACs (db) Typ | 100 dB |
Mechanical
| Width | 3.9mm | Height | 1.5mm |
| Length | 8.65mm | Weight | 0.0002 |
| Packaging | Tube | Mounting Type | SMD |
| Mounting Style | SMD/SMT | Number of Pins | :14 |
| Package / Case | 14SOIC N | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Top Termination | 85°C |
| Size / Dimension | 8.65 x 3.9 x 1.5mm | Number of Positions | 14 |
| Supplier Device Package | 14-SOIC | ||
Product Info
| Base Unit | :3204 | Matchcode | MCP3204-BI/SL |
| Architecture | SAR | Standard Leadtime | 14 weeks |
| Number of A/D Converters | 4|2 | Number of Inputs and Type | 4 Single-Ended, Unipolar; 2 Pseudo-Differential, Unipolar |
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
Online Document
Online Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- MCP3204, 3208
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
