点击放大查看

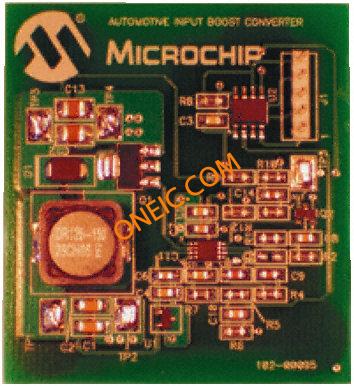

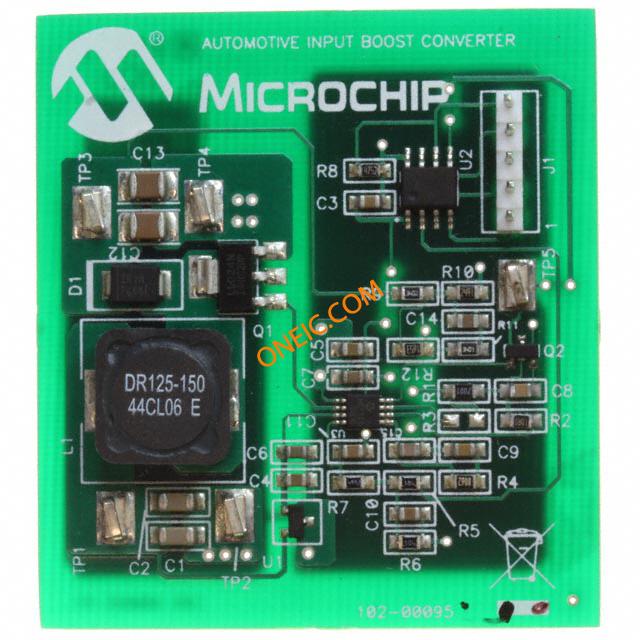

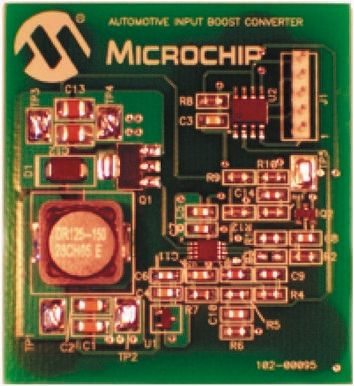

MCP1630DM-DDBS1
| Manufacturer | |
| Description | MCP1630 Automotive Input Boost Converter Demo Board Power Management IC Development Tools MCP1630 Auto Input Boost Demo Brd MCP1630 Automotive Input Boost Demo BOARD DEMO BOOST AUTO INPUT Development Kit, Power Management With Demonstration Board MCP1630, BOOST CONVERTER, DEMO BOARD Microchip MCP1630 升压转换器 演示板 |
| Category |
商业参数
| 最小起订量 | 4 | 产品 | Power Management Modules |
| 单位包装 | 1 | 其他名称 | MCP1630DMDDBS1 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :PIC | 位数 | :8 bit |
| 输出电流 | 400mA | 元件数量 | :PIC12F |
| 稳压器拓扑 | Boost | 开关频率 | 500kHz |
| 最小输入电压 | 36.5V | ||
机械参数
| 重量 | 0.25 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :Tight Line and Load Regulation and High Efficiency over Entire Operating Input Voltage Range | 技术 | Power Management |
| 套件内容 | Demonstration Board | 主要用途 | DC/DC, Step Up |
| 制造商全称 | :PIC12F6xx | 卡标准 | Development Kit |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | MCP1630, PIC12F683 |
| 使用的IC/零件 | MCP1630 | 芯片组制造商 | :Microchip |
| 支持MCU系列 | :PIC12Fxxx | 适用产品/相关产品 | :MCP1630, PIC12F683 |
