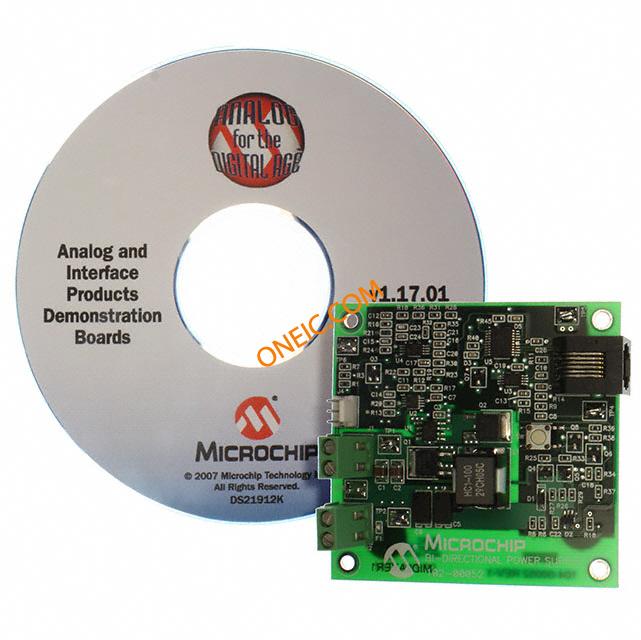

MCP1630RD-DDBK3

Manufacturer	Microchip Technology Inc.
Description	MCP1630V Bi Directional 4 Cell Li Ion Charger REF Design Power Management IC Development Tools Dual Synch Buck Reg Demo Brd MCP1630 Laptop Computer Bi-direction REF DESIGN MCP1630V BI-DIR 4CELL
Category	嵌入式系统与开发工具嵌入式开发工具评估与开发套件

对参数有疑问？问 AI 助手

商业参数

最小起订量	2	产品	Power Management Modules
单位包装	1	其他名称	MCP1630RDDDBK3
产品类别	Power Management IC Development Tools	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

6.5 V to 7 V

产品信息

类型	Development Kit	内容	Board, Software
嵌入式	Yes, MCU, 8-Bit	主要用途	Power Management, Battery Charger
工具类型/特性	MCP1630V, PIC16F88, MCP6022	主要特性	4 Cells- Li-Ion, 6.5 ~ 7 V Input
使用的IC/零件	MCP1630	次要特性	MCU Generates Frequency, 94% Efficiency, 2 Status LEDs

Documents & Media

Online Document

idcplg?IdcService=SS_GET_PAGE&nodeId=1406&dDocName=en520041

Online Document

MCP1630V Ref Design Guide

Online Document

MCP1630/V

PDF Document

51641a.pdf
