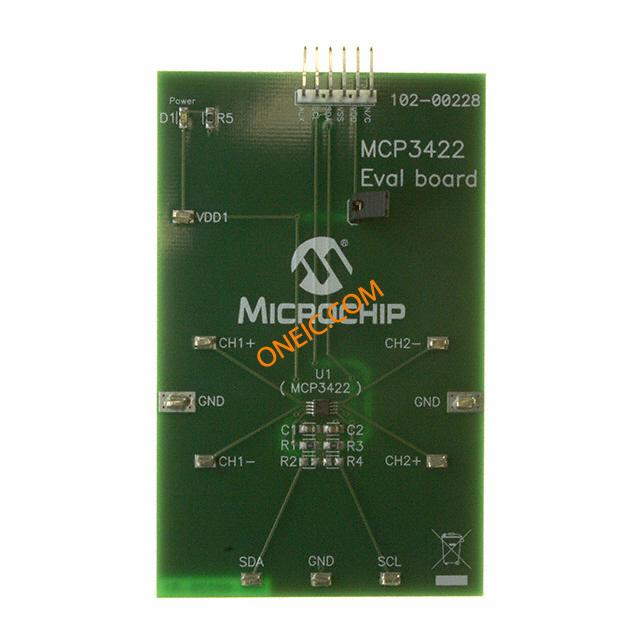

MCP3422EV

Manufacturer	Microchip Technology Inc.
Description	Evaluation Board For 18Bit Multichannel Analog To Digital Converter With IC Interface Development Boards & Kits - PIC / DSPIC MCP3422 Eval Board for PICKit Serial BOARD EVAL MCP3422 PICKIT SERIAL MCP3422 Evaluation Board for PICkit Serial
Category	嵌入式系统与开发工具嵌入式MCU与DSP评估板MCU评估板

对参数有疑问？问 AI 助手

商业参数

产品	Evaluation Boards	产品类别	Development Boards & Kits - PIC / DSPIC
标准包装数量	Boxed	工厂包装数量	1

合规参数

RoHS

RoHS Compliant

电气参数

核心类型	PIC	接口	I2C, SPI, USART
输入范围	±2.048 V	数据接口	Serial
位数	18	供电电压	5 V
ADC/DAC 数量	2	采样率（每秒）	3.75

机械参数

核心数/总线宽度

8 bit

产品信息

类型	Development Kit	内容	Board
功能	Evaluation board for 18 bit multi channel delta sigma analog to digital converter	工具类型/特性	MCP3422
使用的IC/零件	MCP3422	适用产品/相关产品	MCP3422

环境参数

工作温度

-40°C ~ 125°C

Documents & Media

PDF Document

22088c.pdf

Online Document

MCP3422 Eval Board Guide

Online Document

MCP3422-24

Online Document

idcplg?IdcService=SS_GET_PAGE&nodeId=1406&dDocName=en538453#
