点击放大查看

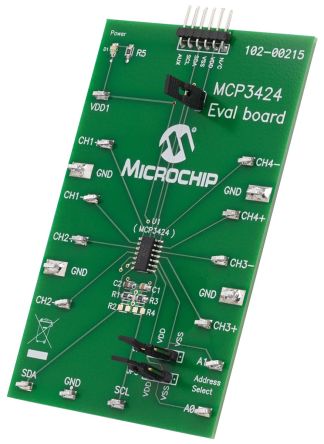

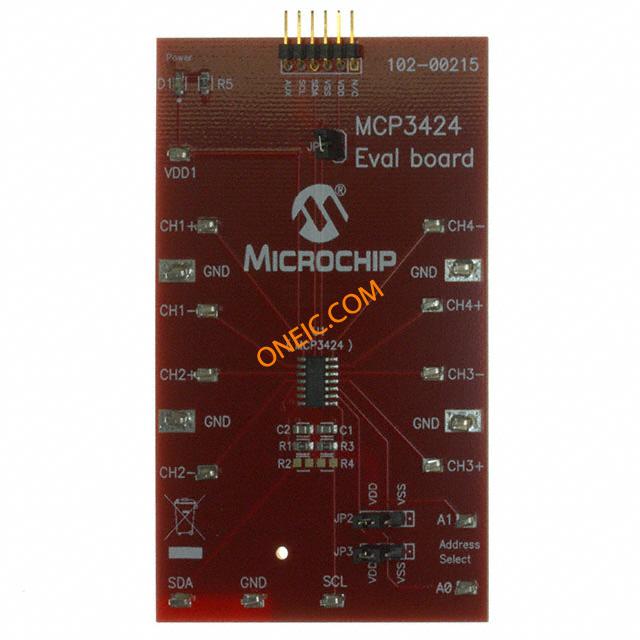

MCP3424EV
| Manufacturer | |
| Description | MCP3424 ADC EVALUATION BOARD Data Conversion IC Development Tools MCP3424 ADC Eval Board EVALUATION BOARD FOR MCP3424 Development Kit For Multi-Channel Delta Segma Analog-To-Digital Converter MCP3424, ADC, EVALUATION BOARD Microchip 评估测试板 |
| Category |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Data Conversion IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 接口 | I2C | 输入范围 | ±2.048 V |
| 数据接口 | I²C | 位数 | 18 |
| 供电电压 | 5 V | ADC/DAC 数量 | 1 |
| 采样率（每秒） | 3.75 ~ 240 | ||
机械参数
| 重量 | 0.04 | ||
产品信息
| 类型 | ADC | 内容 | Board |
| 工具类型/特性 | MCP3424 | 使用的IC/零件 | MCP3424 |
| 适用产品/相关产品 | PICkit Serial Analyzers - DV164122 | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
