PIC16C505-04/SL
| Manufacturer | |
| Description | MCU 8-bit PIC16 PIC RISC 1.5KB EPROM 3.3V/5V 14-Pin SOIC N Tube 8 bit MCU SOIC14 IC MCU 8BIT 1.5KB OTP 14SOIC PIC16C505-04/SL, 8 bit Microcontroller PIC 4MHz 1K EPROM, 72B RAM, 14-Pin SOIC 8-bit Microcontrollers - MCU 1.5KB 72 RAM 12 I/O 4MHz SOIC14 8BIT CMOS MCU, SMD, 16C505, SOIC14 I.C.PIC16C505-04/SL Microchip PIC 系列 8 bit PIC MCU, 4MHz, 1024 x 12 字 ROM EPROM, 72 B RAM, 14针 SOIC封装 PIC16C 1,5K SOIC14 70°C |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 57 |
| Other Names | PIC16C50504SL | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 57 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Part Status | :16C505 |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Speed | 4 MHz | Timer | 1 x 8 bit |
| Memory | :12KB | RAM Size | 72 byte |
| Core Size | 8-Bit | Core Type | PIC |
| Interface | RS-232 | Clock Rate | 20 MHz |
| EEPROM Size | :1KB | Memory Size | 72 B |
| Memory Type | OTP | Number of I/O | 12 |
| Number of Bits | :8 | Voltage Rating | 3 → 5.5 V |
| Clock Frequency | :4MHz | Frequency - Max | 4MHz |
| Oscillator Type | Internal | Voltage - Supply | 3.3|5 V |
| Number of Channels | 0 | Program Memory Size | 1.5 KB |
| Program Memory Type | EPROM | Voltage - Input (Min) | 3V |
| Frequency (Center/Band) | 8bit | Power Dissipation (Max) | 700 mW |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 5.5 V | ||
Mechanical
| Width | 3.99mm | Height | 1.55mm |
| Length | 8.81mm | Weight | 0.000001 |
| Packaging | Tube | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :14 |
| Package / Case | 14SOIC N | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Size / Dimension | 8.81 x 3.99 x 1.55mm |
| Number of Positions | 14 | Supplier Device Package | 14-SOIC |
| Number of Cores/Bus Width | 8 Bit | ||
Product Info
| USB | 0 | Series | PIC16 |
| Matchcode | PIC16C505-04/SL | On-Chip RAM | No |
| Peripherals | POR, WDT | Architecture | RISC |
| Core Processor | PIC | Number of Timers | 1 |
| Controller Series | :PIC16C | Standard Leadtime | 14 weeks |
| RF Family/Standard | PIC16 | Microcontroller Features | :INTERNAL OSCILLATOR,ISP |
Environmental
| Temperature Range | :Commercial | Temperature - Test | -40°C |
| Operating Temperature | 0 to 70 °C | ||
Documents & Media
PDF Document
Similar Parts
ISPICR1
RF Solutions
ADAPTER IN-CIRCUIT PROGRAMMING
Details
PA-DSO-1403-D250-14/2
Logical Systems Inc.
ADAPTER 14-DIP BD W/2 14-SO PLUG
$174.7600
Details
PA-DSO-1403Z-D250-14/2
Logical Systems Inc.
ADAPTER 14-ZIF BD W/14-SO PLUGS
$324.3600
Details

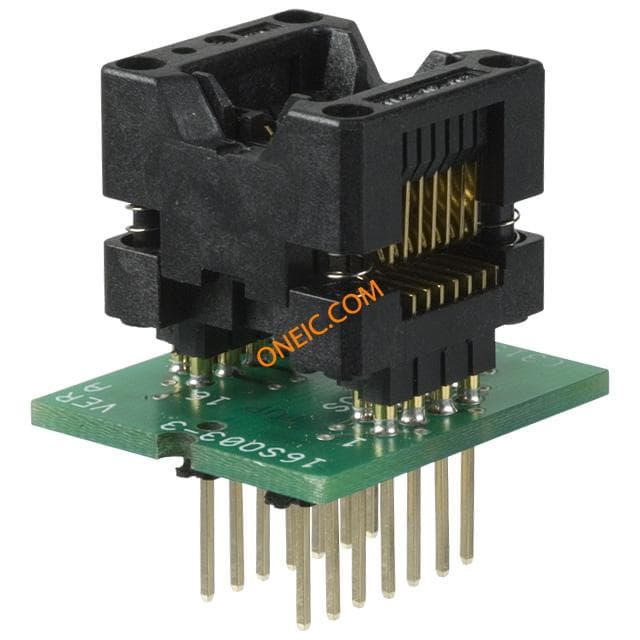

PA14SO1-03-3
Logical Systems Inc.
ADAPTER 14-SOIC TO 14-DIP
$346.8000
Details

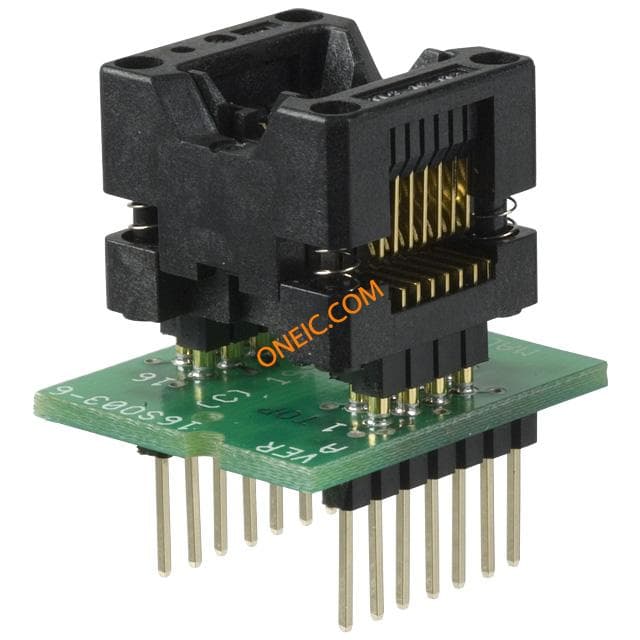

PA14SO1-03-6
