点击放大查看

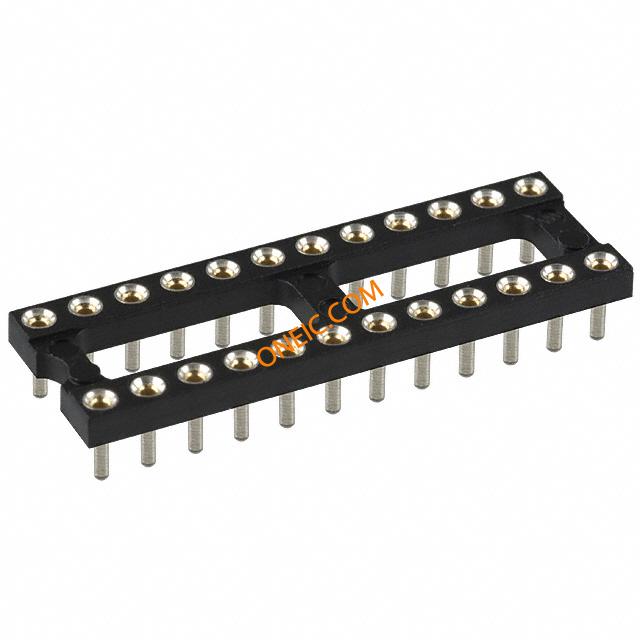

115-93-324-41-003000
| Manufacturer | |
| Description | 24PIN LOW PROFILE IC SOCKET .300 IC & Component Sockets 24P TIN PIN GLD CONT |
| Category |
商业参数
| 产品 | DIP / SIP Sockets | 交货时间 | 20 Days |
| 子类别 | Connector Socket | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 16 | 工厂包装数量 | 16 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 1 kV | 最大额定电流 | 3 A |
机械参数
| 间距 | 0.100" (2.54mm) | 底座类型 | Open Frame |
| 包装方式 | Tube | 排间距 | 7.62 mm |
| 安装类型 | Through Hole | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | DIP | 触头材料 | Beryllium Copper |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Solder Tail |
| 触点数 | 24 | 接触镀层厚度 | 30µin (0.76µm) |
| 位置或引脚数（网格） | 24 (2 x 12) | ||
产品信息
| 类型 | DIP, 0.3" (7.62mm) Row Spacing | 产品特性 | Open Frame |
| 适用产品/相关产品 | 115-13-324-41-003000115-43-324-41-003000 | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
