点击放大查看
830-10-050-20-001000
| Manufacturer | |

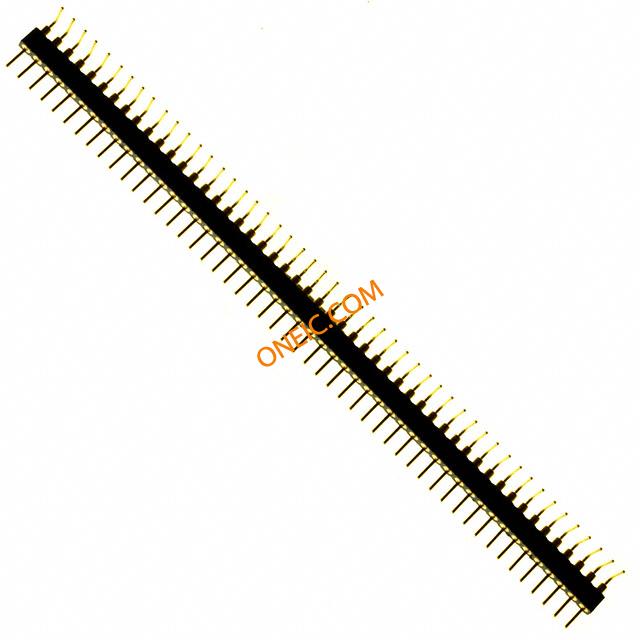

| Description | CONN HEADER SGL 50POS R/A 2MM AU Headers & Wire Housings 50P SINGLE ROW R/A HEADER |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 5 |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold |
| 排数 | 1 | 位数 | 50 |
| 接触长度 - 配合 | 0.142" (3.61mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 加载位置数 | All | ||
Documents & Media
PDF Document
