104-13-316-41-770000
| Manufacturer | |
| Description | Conn DIP Socket SKT 16 POS 2.54mm Press Fit ST Thru-Hole Tube SOCKET IC OPEN FRAME .300 16POS IC & Component Sockets 16PIN SKT .175L |
| Category |
商业参数
| 产品类别 | IC & Component Sockets | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 3 |
| 绝缘电阻 | 10000 | 最小输入电压 | 150VDC|100VAC |
机械参数
| 深度 | 10.1 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.44 | 包装方式 | Tube |
| 排间距 | 7.62 | 端接方式 | Press Fit |
| 安装类型 | Through Hole | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Beryllium Copper |
| 壳体材料 | Polychlorinated Terphenyl | 总长度 | 20.3 |
| 触点数 | 16 | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 接触镀层厚度 | 30µin (0.76µm) | 位置或引脚数（网格） | 16 (2 x 8) |
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 产品特性 | Open Frame | ||
Documents & Media
相关型号
150-90-316-00-001000
Mill-Max
Headers & Wire Housings 16P DIP HDR SOLDER TAIL Conn DIP Adapter HDR 16 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 16POS
142-90-316-00-594000
Mill-Max
Headers & Wire Housings 16P DIP HDR OPEN FRAME .835L Conn DIP Adapter HDR 16 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 16POS
142-90-316-00-593000
Mill-Max
Headers & Wire Housings 16P DIP HDR OPEN FRAME .585L Conn DIP Adapter HDR 16 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 16POS
142-90-316-00-591000
Mill-Max
Headers & Wire Housings 16P DIP HDR OPEN FRAME .210L Conn DIP Adapter HDR 16 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .300 16POS

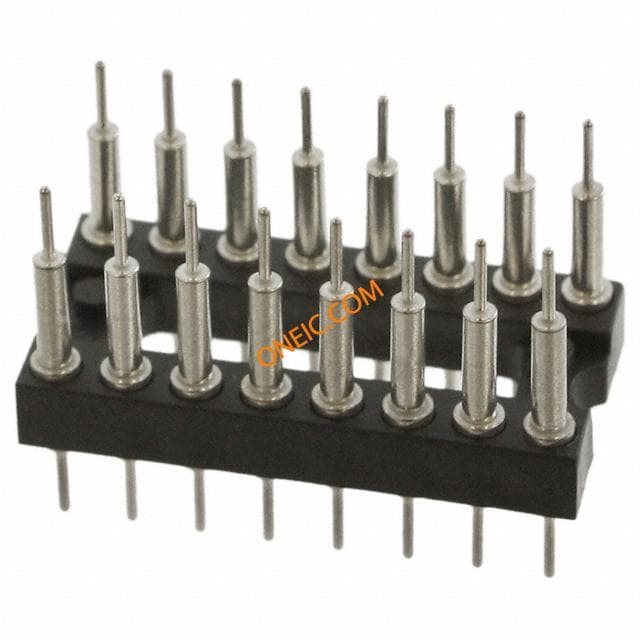

142-90-316-00-592000
