点击放大查看

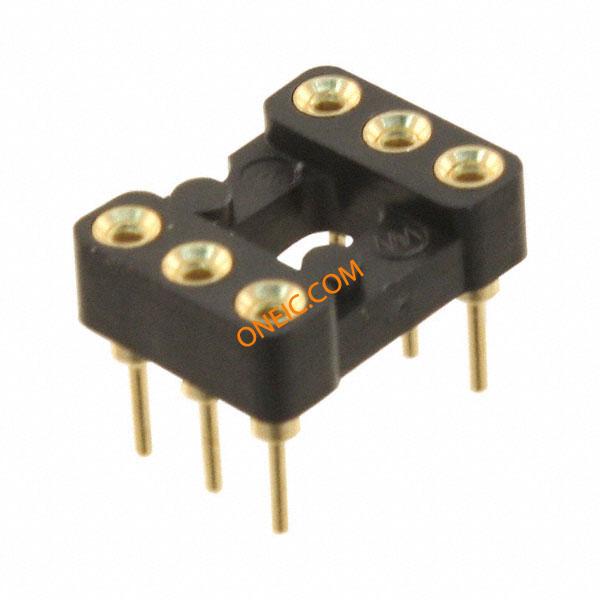

110-13-306-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 6 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN FRAME .300 6POS IC & Component Sockets 6 PIN SKT 200u Sn DIP SOCKET, 6POS, THROUGH HOLE |
| Category |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 67 | 工厂包装数量 | 67 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366930 | ||
电气参数
| 接触电阻 | 10 | 最大额定电流 | 3 |
| 绝缘电阻 | 10000 | 最小输入电压 | 150VDC|100VAC |
机械参数
| 深度 | 10.16 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.19 | 重量 | 0.002 |
| 包装方式 | Tube | 排间距 | 7.62 |
| 端接方式 | Solder | 柱间距 | :7.62mm |
| 安装类型 | Through Hole | 连接器类型 | :DIP Socket |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Beryllium Copper Alloy | 壳体材料 | Polychlorinated Terphenyl |
| 总长度 | 7.6 | 触点数 | 6 |
| 接触件端接 | :Through Hole Vertical | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 接触镀层厚度 | 30µin (0.76µm) | 位置或引脚数（网格） | 6 (2 x 3) |
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 系列 | :- | 产品特性 | Open Frame |
