110-43-640-41-001000
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 10 mohm |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 Mohm |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Depth | 17.7 mm | Pitch | 0.100" (2.54mm) |
| Height | 4.19 mm | Weight | 0.003 |
| Base Type | Open Frame | Packaging | Tube |
| Row Spacing | 15.24 mm | Termination | Solder |
| Pitch - Post | :15.24mm | Mounting Type | Through Hole |
| Connector Type | :DIP Socket | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Package / Case | DIP | Contact Material | Beryllium Copper Alloy |
| Housing Material | Polychlorinated Terphenyl | Length - Overall | 50.8 mm |
| Termination Style | Solder Tail | Number of Contacts | 40 |
| Contact Termination | :Solder | Insulation Material | Polychlorinated Terphenyl |
| Number of Positions | Not Required | Contact Finish Thickness | 30µin (0.76µm) |
| Number of Positions or Pins (Grid) | 40 (2 x 20) | ||
Product Info
| Type | DIP Socket | Gender | SKT |
| Series | :110 | Features | Open Frame |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
142-90-640-00-594000
Mill-Max
$213.5200
Details
142-90-640-00-592000
Mill-Max
$100.4088
Details
142-90-640-00-593000
Mill-Max
$47.0832
Details

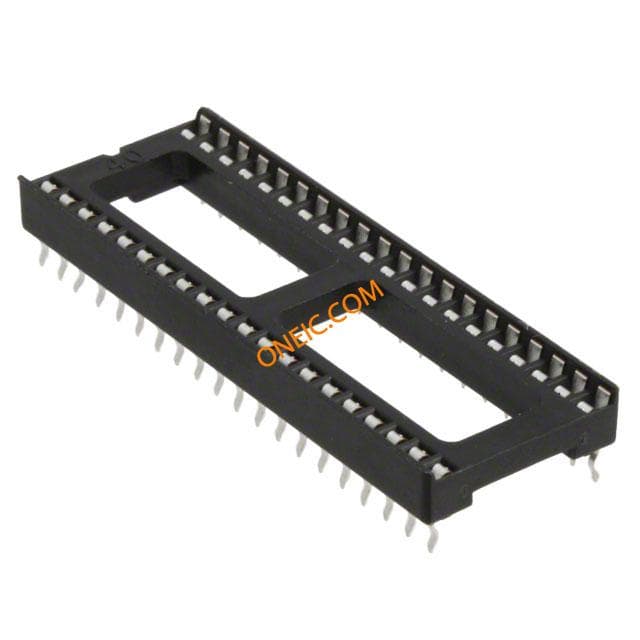

4840-6004-CP
