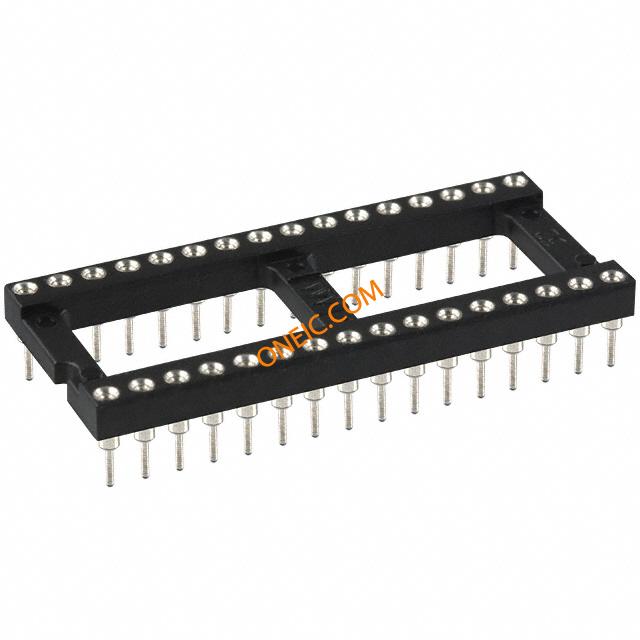

110-44-632-41-001000
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 12 | Factory Pack Quantity | 12 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 10 mohm |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 Mohm |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Depth | 17.7 mm | Pitch | 0.100" (2.54mm) |
| Height | 4.19 mm | Base Type | Open Frame |
| Packaging | Tube | Row Spacing | 15.24 mm |
| Termination | Solder | Mounting Type | Through Hole |
| Contact Finish | Tin Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | DIP |
| Contact Material | Beryllium Copper Alloy | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 40.6 mm | Termination Style | Solder Tail |
| Number of Contacts | 32 | Insulation Material | Polychlorinated Terphenyl |
| Number of Positions | Not Required | Contact Finish Thickness | 200µin (5.08µm) |
| Number of Positions or Pins (Grid) | 32 (2 x 16) | ||
Product Info
| Type | DIP Socket | Gender | SKT |
| Features | Open Frame | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
PDF Document
Similar Parts
142-90-632-00-592000
Mill-Max
$25.4592
Details
142-90-632-00-593000
Mill-Max
$32.9324
Details
142-90-632-00-594000
Mill-Max
$57.5076
Details

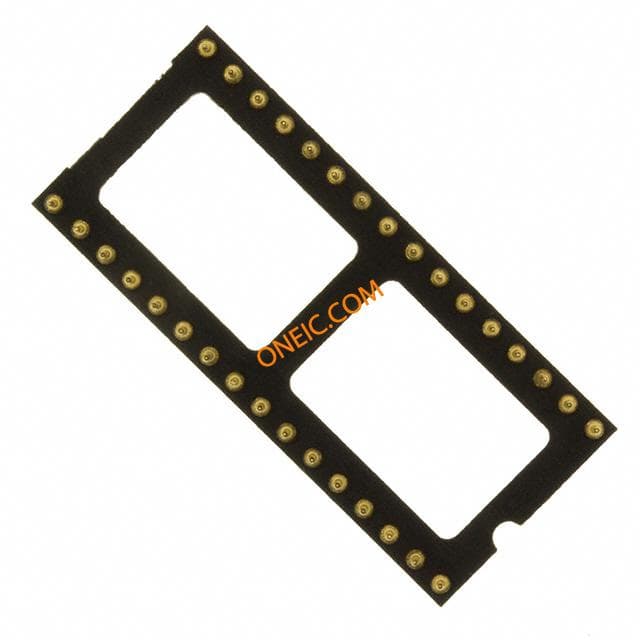

142-10-632-00-593000
