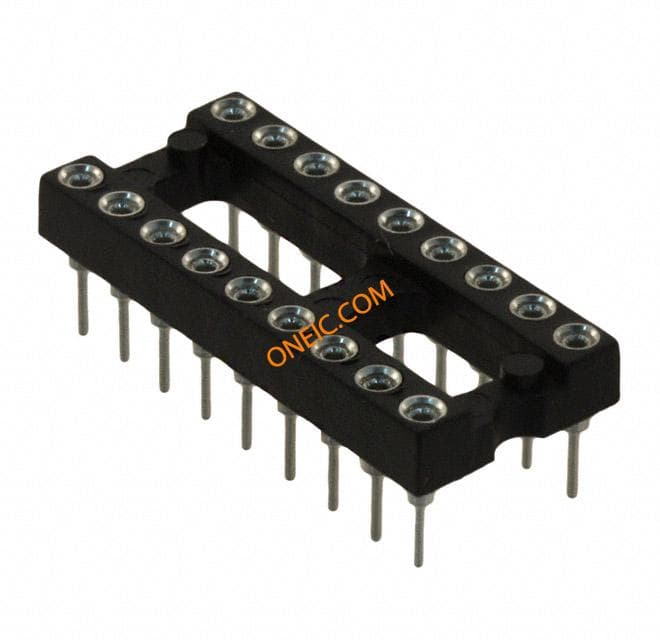

110-93-318-41-001000
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DIP / SIP Sockets | Lead Time | 20 Days |
| Subcategory | Connector Socket | Product Category | IC & Component Sockets |
| Standard Package | 22 | Factory Pack Quantity | 22 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | Not Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 10 mohm |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 Mohm |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Depth | 10.1 mm | Pitch | 0.100" (2.54mm) |
| Height | 4.19 mm | Weight | 0.005 |
| Base Type | Open Frame | Packaging | Tube |
| Row Spacing | 7.62 mm | Termination | Solder |
| Pitch - Post | :7.62mm | Mounting Type | Through Hole |
| Connector Type | :DIP Socket | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Package / Case | DIP | Contact Material | Beryllium Copper Alloy |
| Housing Material | Polychlorinated Terphenyl | Length - Overall | 22.8 mm |
| Termination Style | Solder Tail | Number of Contacts | 18 |
| Contact Termination | :Solder | Insulation Material | Polychlorinated Terphenyl |
| Number of Positions | Not Required | Contact Finish Thickness | 30µin (0.76µm) |
| Number of Positions or Pins (Grid) | 18 (2 x 9) | ||
Product Info
| Type | DIP Socket | Gender | SKT |
| Series | :110 | DELETED | Not Compliant |
| Features | Open Frame | For Use With/Related Products | 110-13-318-41-001000110-41-318-41-001000110-43-318-41-001000 |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
