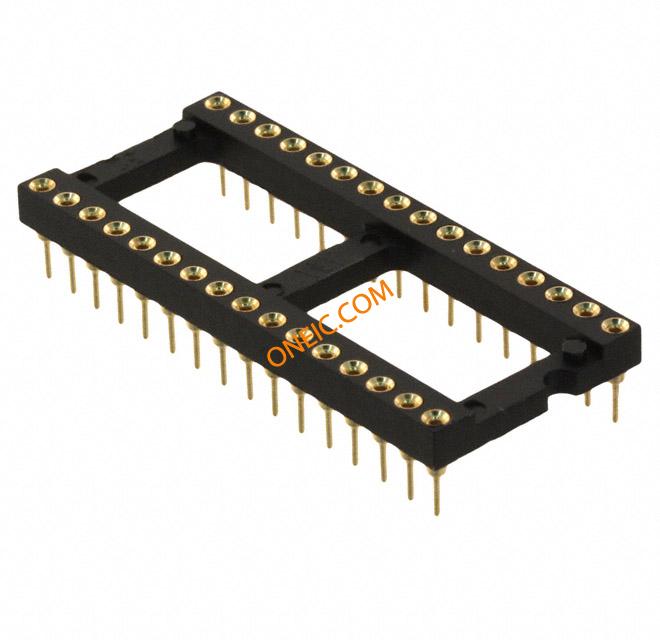

点击放大查看
110-93-632-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Tube 32 PIN IC SOCKET GOLD .600 Socket; DIP;Open;32 Pos.;0.100In.cen.;Solder;0.6In.;30muIn. Gold over 50muIn. Ni IC & Component Sockets 32P TIN PIN GLD CONT Socket,DIP;Open;32Pos.;0.100In.cen.;Solder;0.6In.;30muIn.Goldover50muIn.Ni |
| Category |
商业参数
| 产品 | DIP / SIP Sockets | 交货时间 | 20 Days |
| 子类别 | Connector Socket | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 12 | 工厂包装数量 | 12 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Not Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 1 kV | 接触电阻 | 10 |
| 最大额定电流 | 3 A | 绝缘电阻 | 10000 |
| 最小输入电压 | 150VDC|100VAC | ||
机械参数
| 深度 | 17.7 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.19 | 底座类型 | Open Frame |
| 包装方式 | Tube | 排间距 | 15.24 mm |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | DIP |
| 触头材料 | Beryllium Copper Alloy | 壳体材料 | Polychlorinated Terphenyl |
| 总长度 | 40.6 | 端接样式 | Solder Tail |
| 触点数 | 32 | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 接触镀层厚度 | 30µin (0.76µm) | 位置或引脚数（网格） | 32 (2 x 16) |
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 产品特性 | Open Frame | 适用产品/相关产品 | 110-13-632-41-001000110-43-632-41-001000 |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
