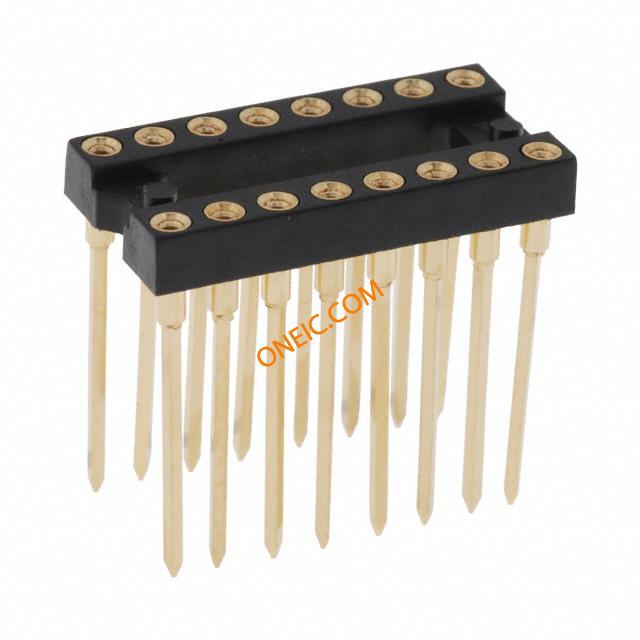

123-13-316-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 16 POS 2.54mm Wire Wrap ST Thru-Hole Tube W/W IC SOCKET 16 PIN .300 GOLD Socket; DIP;16Pins;3-Level;Open;Solderless Wrapost;0.3In.;Gold;SMD;3A IC & Component Sockets 16P GLD PIN GLD CONT DIP SOCKET, 16POS, THROUGH HOLE Socket,DIP;16Pins;3-Level;Open;SolderlessWrapost;0.3In.;Gold;SMD;3A |
| Category |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 1 kV | 接触电阻 | 10 mohm |
| 最大额定电流 | 3 A | 绝缘电阻 | 10000 Mohm |
| 最小输入电压 | 150VDC|100VAC | ||
机械参数
| 深度 | 10.16 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 4.9 mm | 重量 | 0.00181 |
| 底座类型 | Open Frame | 包装方式 | Tube |
| 排间距 | 7.62 mm | 端接方式 | Wire Wrap |
| 柱间距 | :7.62mm | 安装类型 | Through Hole |
| 连接器类型 | :DIP Socket | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | DIP | 触头材料 | Beryllium Copper |
| 壳体材料 | Polychlorinated Terphenyl | 总长度 | 20.32 mm |
| 端接样式 | Wire Wrap | 触点数 | 16 |
| 接触件端接 | :Wire Wrap | 绝缘材料 - 类型 | Polychlorinated Terphenyl |
| 位数 | Not Required | 接触镀层厚度 | 30µin (0.76µm) |
| 位置或引脚数（网格） | 16 (2 x 8) | ||
产品信息
| 类型 | DIP Socket | 连接器性别 | SKT |
| 系列 | :123 | 产品特性 | Open Frame |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
