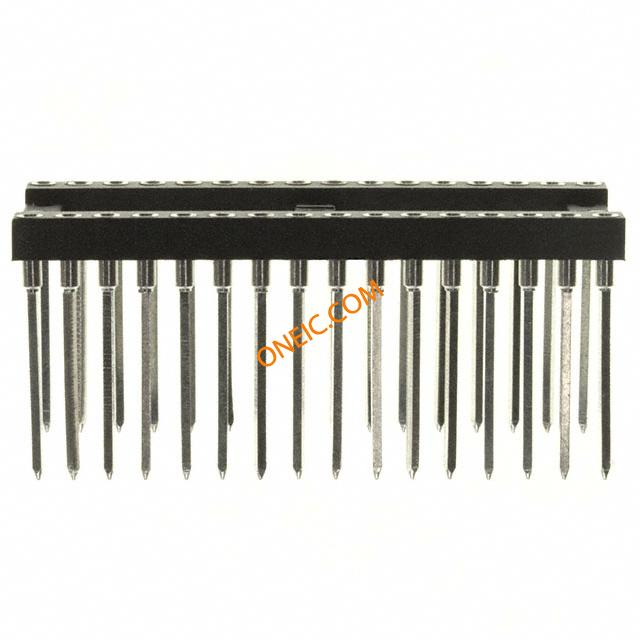

123-93-632-41-001000

Manufacturer	Mill-Max Mfg. Corp.
Description	Conn DIP Socket SKT 32 POS 2.54mm Wire Wrap ST Thru-Hole Tube 32 PIN W/W IC SOCKET GOLD .600 IC & Component Sockets 32P TIN PIN GLD CONT Socket,DIP;32Pins;3-Level;Open;SolderlessWrapost;0.6In.;Gold;SMD;0.51In.;3A
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品	DIP / SIP Sockets	产品类别	IC & Component Sockets
标准包装数量	12	工厂包装数量	12

合规参数

RoHS

Contains lead / RoHS non-compliant

欧盟RoHS

Not Compliant

电气参数

接触电阻	10	最大额定电流	3
绝缘电阻	10000	最小输入电压	150VDC

机械参数

深度	17.78	间距	0.100" (2.54mm)
高度	4.9	包装方式	Tube
排间距	15.24	端接方式	Wire Wrap
安装类型	Through Hole	接触镀层	Gold Over Nickel
安装样式	Through Hole	排数	2
触头材料	Beryllium Copper	壳体材料	Polychlorinated Terphenyl
总长度	40.64	端接样式	Solder Pin
触点数	32	绝缘材料 - 类型	Polychlorinated Terphenyl
接触镀层厚度	30µin (0.76µm)	位置或引脚数（网格）	32 (2 x 16)

产品信息

类型	DIP Socket	连接器性别	SKT
产品特性	Open Frame

Documents & Media

PDF Document

109-259769.pdf
