No Image
153-10-950-00-001000
| Manufacturer | |
| Description | Conn DIP Adapter HDR 50 POS 2.54mm Wire Wrap ST Thru-Hole Tube HEADER OPEN .018"DIA .900 50POS Headers & Wire Housings 50P DIP HDR 3 LEVEL WRAPOST |
| Category |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 8 |
| 工厂包装数量 | 8 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 绝缘电阻 | 10000 | 最小输入电压 | 150VDC|100VAC |
机械参数
| 颜色 | Black | 深度 | 25.3 |
| 间距 | 0.100" (2.54mm) | 高度 | 9.4 |
| 包装方式 | Tube | 排间距 | 0.900" (22.86mm) |
| 端接方式 | Wire Wrap | 触头类型 | Post |
| 安装类型 | Through Hole | 连接器类型 | DIP, DIL - Header |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Brass Alloy | 壳体材料 | Polychlorinated Terphenyl |
| 总长度 | 63.5 | 触点数 | 50 |
| 绝缘材料 - 类型 | Polychlorinated Terphenyl | 位数 | 50 |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | DIP Adapter | 连接器性别 | HDR |
Documents & Media
相关型号
115-93-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN LOWPRO .900 50POS IC & Component Sockets 50P ULTRA LOW DIP SKT 200u Sn/Pb
110-99-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN FRAME .900 50POS IC & Component Sockets 50 PIN STD SOLDER TAIL SKT 200u Sn
110-93-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube 50 PIN IC SOCKET GOLD .900 IC & Component Sockets 50P TIN PIN GLD CONT
116-93-950-41-008000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN ELEVTD .900 50POS IC & Component Sockets 50 PIN ELEVATED SKT .472L
110-13-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN FRAME .900 50POS IC & Component Sockets 50P GLD PIN GLD CONT
116-93-950-41-003000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN ELEVTD .900 50POS IC & Component Sockets 50 PIN ELEVATED SKT .315L
104-13-950-41-770000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Press Fit ST Thru-Hole Tube SOCKET IC OPEN FRAME .900 50POS IC & Component Sockets 50PIN SKT .175L
116-93-950-41-007000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN ELEVTD .900 50POS IC & Component Sockets 50 PIN ELEVATED SKT .402L
110-43-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 50 PIN .900 GOLD IC & Component Sockets 50P TIN PIN GLD CONT
116-93-950-41-006000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN ELEVTD .900 50POS IC & Component Sockets 50 PIN ELEVATED SKT .236L
126-93-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Wire Wrap ST Thru-Hole Tube SOCKET IC OPEN PLUGBL .900 50POS IC & Component Sockets 50P PLUGABLE WRAPOST TAIL SKT .425L
111-93-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN LONGTL .900 50POS IC & Component Sockets 50 PIN DIP SKT 200u Sn/Pb
110-93-950-41-105000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST SMD Tube SOCKET IC GULLWNG .900 50POS SMD IC & Component Sockets 50 PIN SMT SKT 200u Sn/Pb

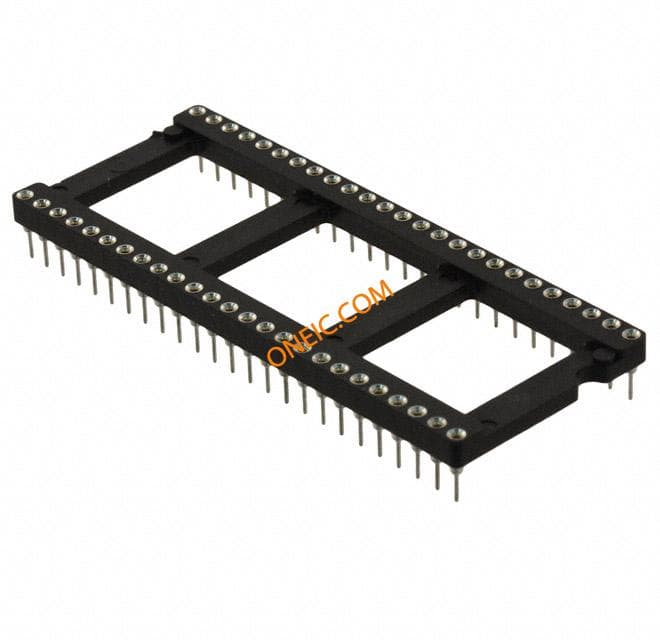

110-91-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC OPEN FRAME .900 50POS IC & Component Sockets 50 PIN STD SOLDER TAIL SKT 200u Sn
121-13-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Wire Wrap ST Thru-Hole Tube SOCKET IC OPEN 1 LVL .900 50POS IC & Component Sockets 50P DIP SKT 1 LEVEL WRAPOST
124-93-950-41-002000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Wire Wrap ST Thru-Hole Tube SOCKET IC OPEN 4 LVL .900 50POS IC & Component Sockets 50P DIP SKT 4 LEVEL WRAPOST
104-13-950-41-780000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Press Fit ST Thru-Hole Tube SOCKET IC OPEN FRAME .900 50POS IC & Component Sockets 50PIN SKT .25L
123-13-950-41-001000
Mill-Max
Conn DIP Socket SKT 50 POS 2.54mm Wire Wrap ST Thru-Hole Tube SOCKET IC OPEN 3 LVL .900 50POS IC & Component Sockets 50P DIP SKT 3 LEVEL WRAPOST

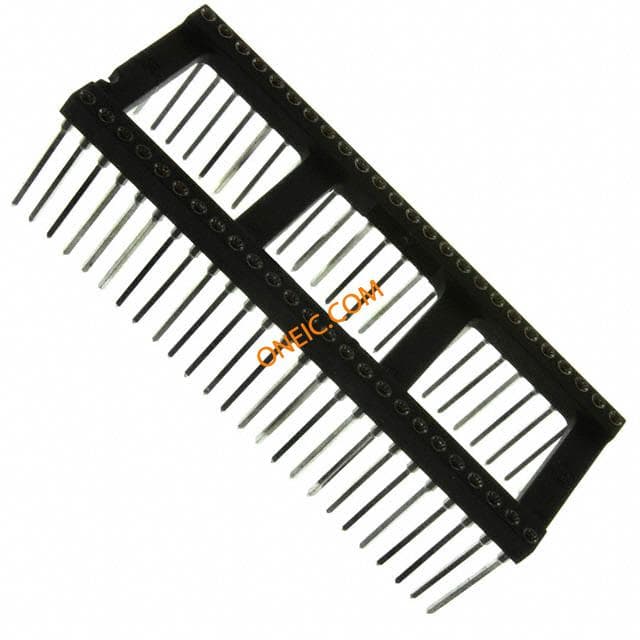

123-93-950-41-001000
