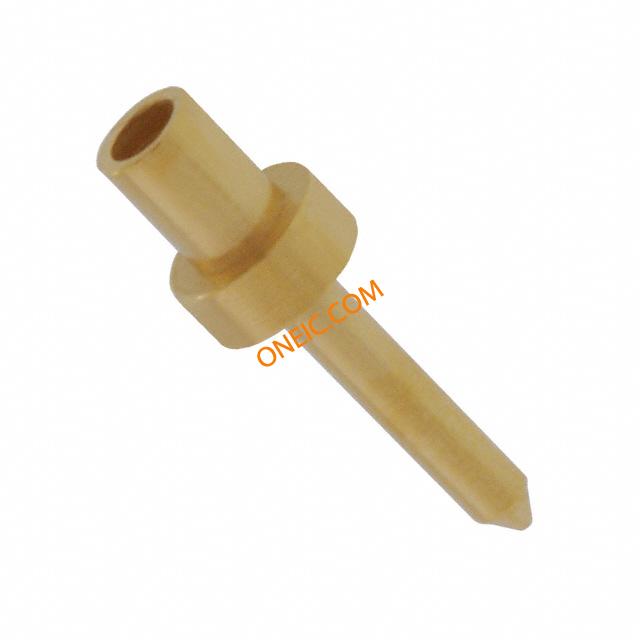

3112-1-00-21-00-00-08-0
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Pins | Lead Time | 20 Days |
| Subcategory | Connector Contact | Product Category | Circuit Board Hardware - PCB |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Mechanical
| Color | Gold | Depth | 1.57 |
| Height | 1.57 | Length | 0.201 in |
| Plating | Gold over Nickel | Material | Brass |
| Packaging | Bulk | Insulation | Non-Insulated |
| Shield Type | No | Termination | Solder |
| Length - Tail | 0.125" (3.18mm) | Mounting Type | Through Hole |
| Terminal Type | Single End | Connector Type | Connector Socket |
| Contact Finish | Gold Over Nickel | Mounting Style | PCB |
| Board Thickness | 0.031 in | Flange Diameter | 0.062" (1.57mm) |
| Material - Body | BrassAlloy | Contact Material | Brass Alloy |
| Length - Overall | 0.201 in | Primary Material | PCPin |
| Diameter - Inside | 0.024 in | Diameter - Outside | 0.062 in |
| Number of Contacts | 1 | Mounting Hole Diameter | 0.043 in |
| Pin Size - Below Flange | 0.024" (0.61mm) Dia | Contact Finish Thickness | 20µin (0.51µm) |
Product Info
| Type | Pins | Gender | SKT |
| Features | Swage | Manufacturer | 3112Series |
Documents & Media
Online Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- 3112-1-00-21-00-00-08-0
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
