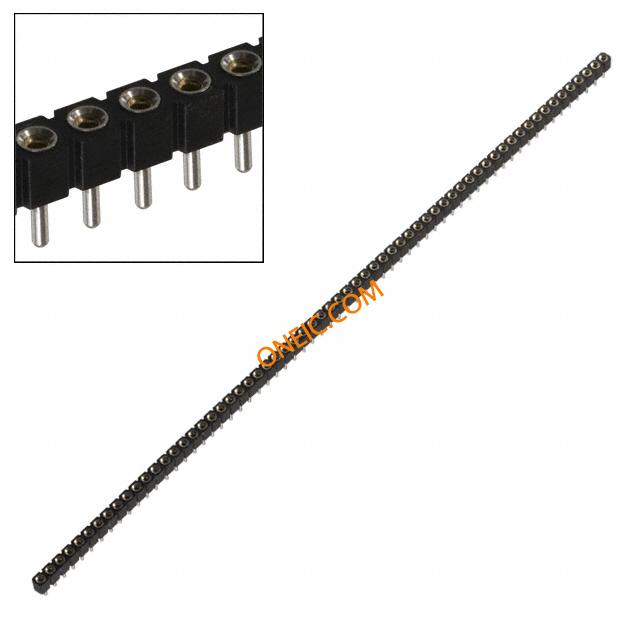

315-43-164-41-001000
| Manufacturer | |
| Description | Conn SIP Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole CONN SOCKET STRIP 64PIN LO PRO IC & Component Sockets 64 POS LOW PRO .1 CONNECTOR, SIP SOCKET, 64POS, PCB |
| Category |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 3 | 工厂包装数量 | 3 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366930 | 抗辐射加固 | No |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 1 kV | 接触电阻 | 10 mohm |
| 最大额定电流 | 3 A | 绝缘电阻 | 10000 Mohm |
| 最小输入电压 | 150VDC|100VAC | 最小供电电压 | 150VDC/100VAC |
机械参数
| 颜色 | Black | 深度 | 2.54 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 3.1 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 1 |
| 封装形式 | SIP | 触头材料 | Beryllium Copper Alloy |
| 壳体材料 | Polychlorinated Terphenyl | 总长度 | 162.56 mm |
| 端接样式 | Solder Tail | 触点数 | 64 |
| 接触件端接 | :Through Hole Vertical | 位数 | 64 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | SIP Socket Strip | 连接器性别 | SKT |
| 系列 | :- | 产品特性 | SIP socket, low profile |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
