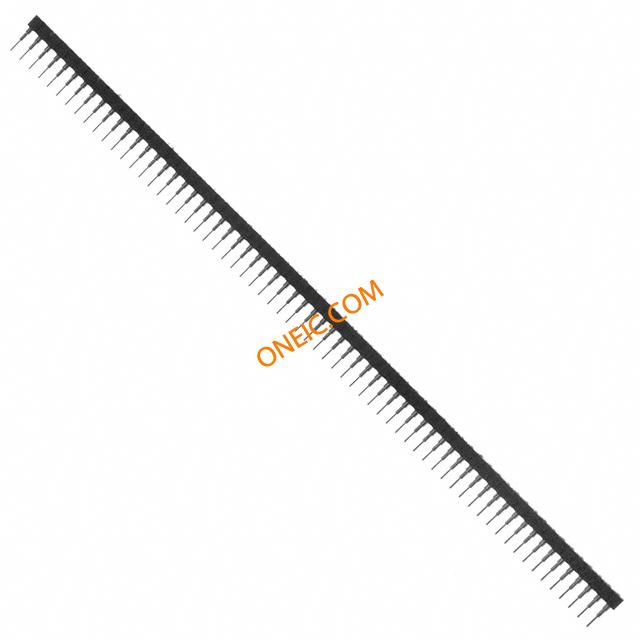

316-43-164-41-006000
| Manufacturer | |
| Description | Conn SIP Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole CONN SCKT STRIP 64PIN .100 L.236 IC & Component Sockets 64 POS ELAVATED .1 |
| Category |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 3 | 工厂包装数量 | 3 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 1 kV | 接触电阻 | 10 |
| 最大额定电流 | 3 A | 最小输入电压 | 150VDC|100VAC |
机械参数

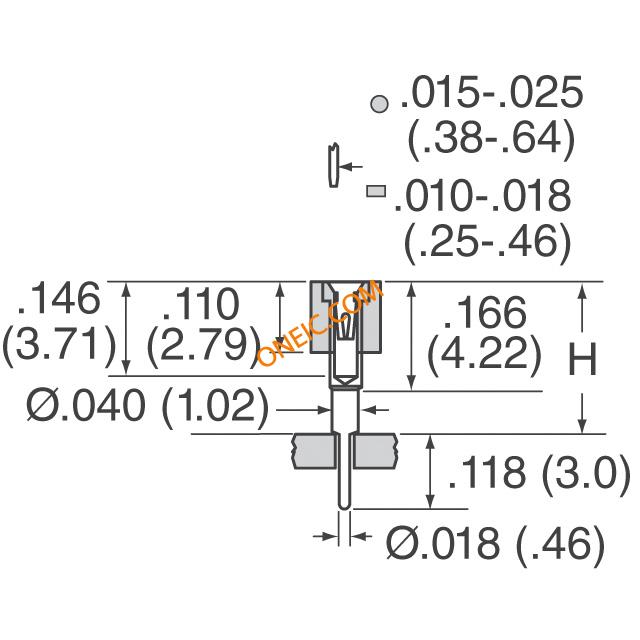

| 颜色 | Black | 深度 | 2.54 |

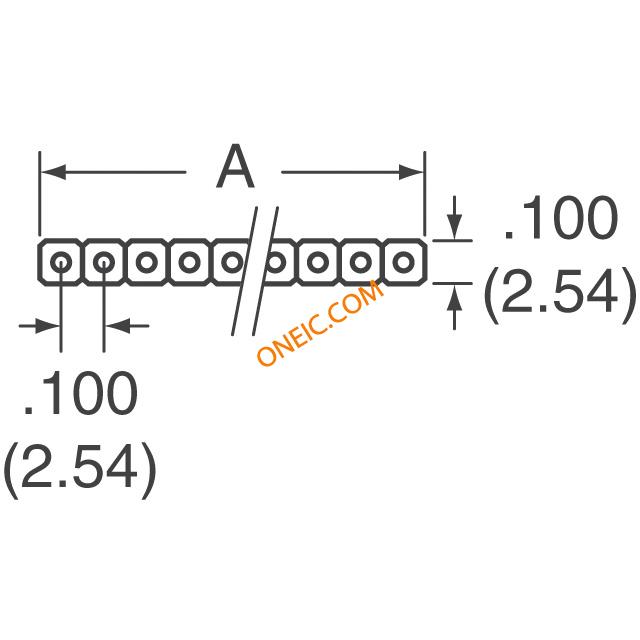

| 间距 | 0.100" (2.54mm) | 高度 | 5.99 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 封装形式 | SIP |
| 触头材料 | Beryllium Copper Alloy | 壳体材料 | Polychlorinated Terphenyl |
| 总长度 | 162.56 | 端接样式 | Solder Tail |
| 触点数 | 64 | 位数 | 64 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | SIP Socket Strip | 连接器性别 | SKT |
| 产品特性 | SIP socket, elevated | 加载位置数 | All |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
