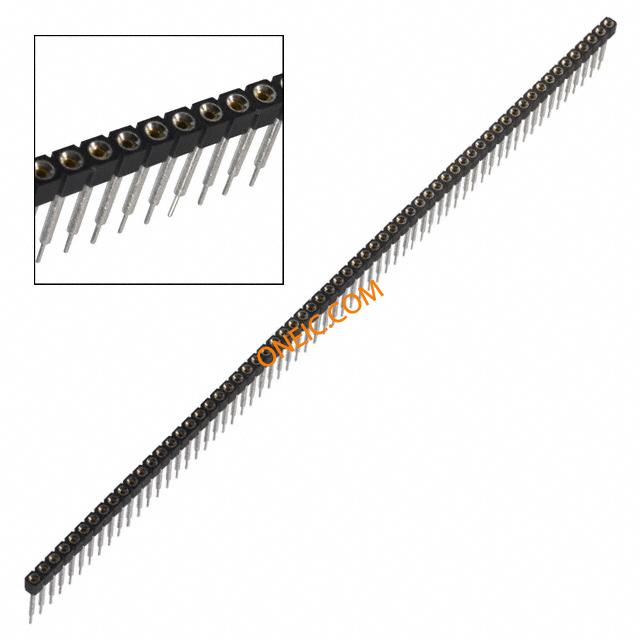

316-93-164-41-007000
| Manufacturer | |
| Description | Conn SIP Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole CONN STRIP SKT 64POS .100 L.402 IC & Component Sockets 64 POS ELAVATED .1 |
| Category |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 3 | 工厂包装数量 | 3 |
合规参数
| RoHS | Not Compliant | ||
电气参数
| 额定电压 | 150VDC|100VAC | 接触电阻 | 10 |
| 最大额定电流 | 3 A | ||
机械参数
| 颜色 | Black | 深度 | 2.54 |
| 间距 | 0.100" (2.54mm) | 高度 | 10.21 |
| 长度 | 162.56 | 端部样式 | Solder |
| 包装方式 | Bulk | 方向 | Straight |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Beryllium Copper Alloy |
| 端接样式 | Solder Pin | 连接器颜色 | Black |
| 触点数 | 64 | 位数 | 64 |
| 绝缘材料 - 材质 | Polychlorinated Terphenyl | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | SIP Socket Strip | 连接器性别 | SKT |
| 其他规格 | 1 | 装配配置 | Through Hole |
| 加载位置数 | All | ||
