346-43-164-41-013000
| Manufacturer | |
| Description | Conn SIP Socket Strip SKT 64 POS 2.54mm Press Fit ST Thru-Hole CONN SOCKET 64 PIN PRESS FIT IC & Component Sockets 64POS PRESS FIT |
| Category |
商业参数
| 产品 | DIP / SIP Sockets | 产品类别 | IC & Component Sockets |
| 标准包装数量 | 3 | 工厂包装数量 | 3 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 3 |
| 最小输入电压 | 150VDC|100VAC | ||
机械参数
| 深度 | 2.54 | 间距 | 0.100" (2.54mm) |
| 高度 | 4.39 | 端接方式 | Press Fit |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 接触镀层 | Gold Over Nickel | 安装样式 | Press Fit |
| 排数 | 1 | 触头材料 | Beryllium Copper Alloy |
| 壳体材料 | Polychlorinated Terphenyl | 总长度 | 162.56 |
| 触点数 | 64 | 接触镀层厚度 | 30µin (0.76µm) |
| 位置或引脚数（网格） | 64 (1 x 64) | ||
产品信息
| 类型 | SIP Socket Strip | 连接器性别 | SKT |
| 产品特性 | Closed Frame | ||
Documents & Media
相关型号
342-90-164-00-591000
Mill-Max
Headers & Wire Housings 64P HDR STRIPS .018/ .018 SOLDER TAILS Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole HEADER SOLDERTAIL SIP 64POS

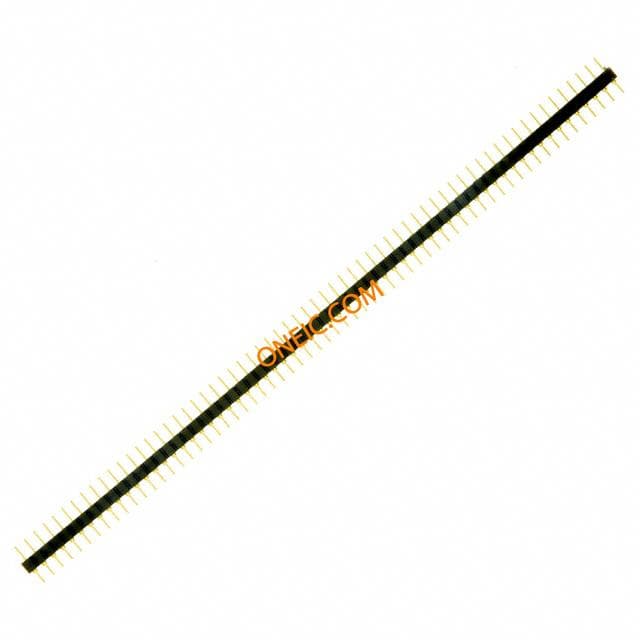

350-90-164-00-006000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole HEADER SOLDERTAIL SIP 64POS Headers & Wire Housings 64P STRAIGHT PIN HDR
350-10-164-00-006000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS .100 SGHT TAIL Headers & Wire Housings 64 POSITION BOARD TO BOARD CONNECTOR, HEADER, 64POS, 1ROW
350-10-164-00-106000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST SMD CONN HEADER 64POS .100 SMT Headers & Wire Housings .1 64POS SMT .189

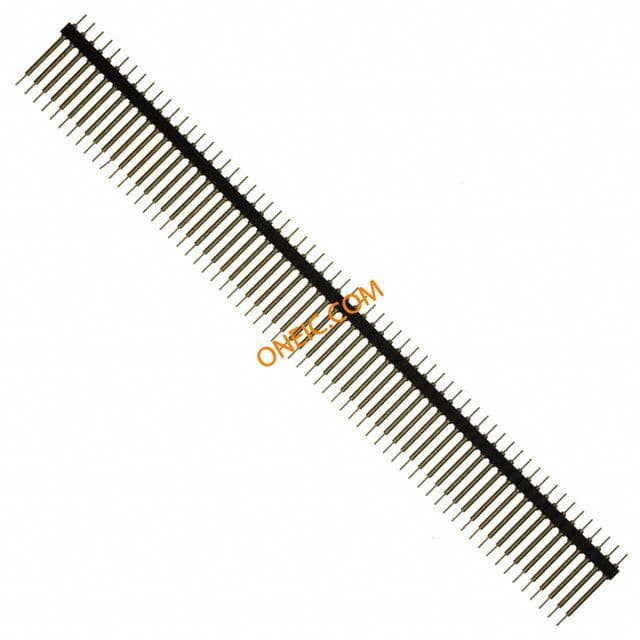

342-10-164-00-593000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS .100 L.585 Headers & Wire Housings 64 POS L=.585

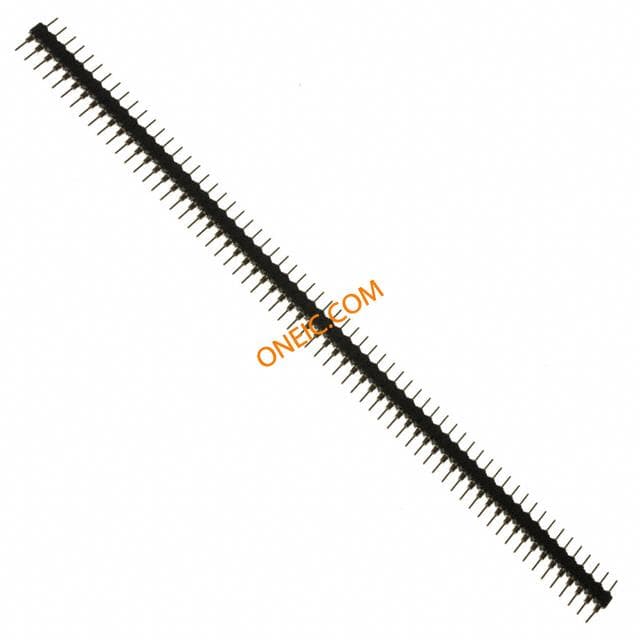

342-10-164-00-591000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS .100 L.210 Headers & Wire Housings 64 POS L=.120 CONNECTOR, HEADER, 64POS, 1ROW, 2.54MM

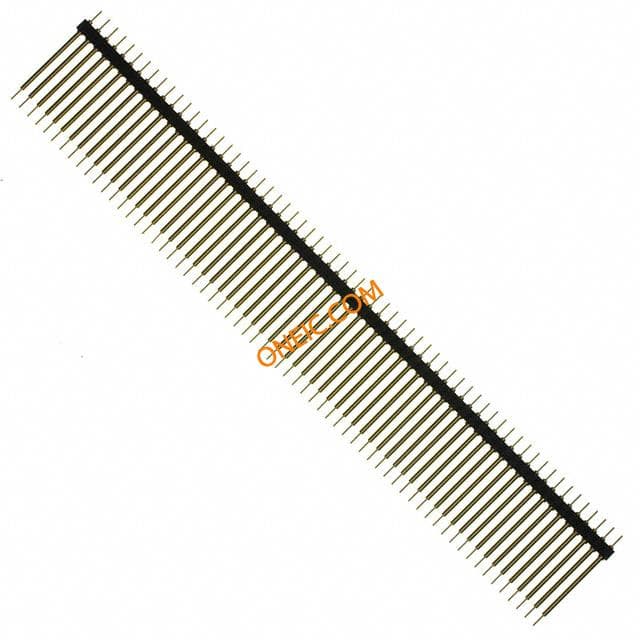

342-10-164-00-594000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS .100 L.835 Headers & Wire Housings 64 POS L=.835

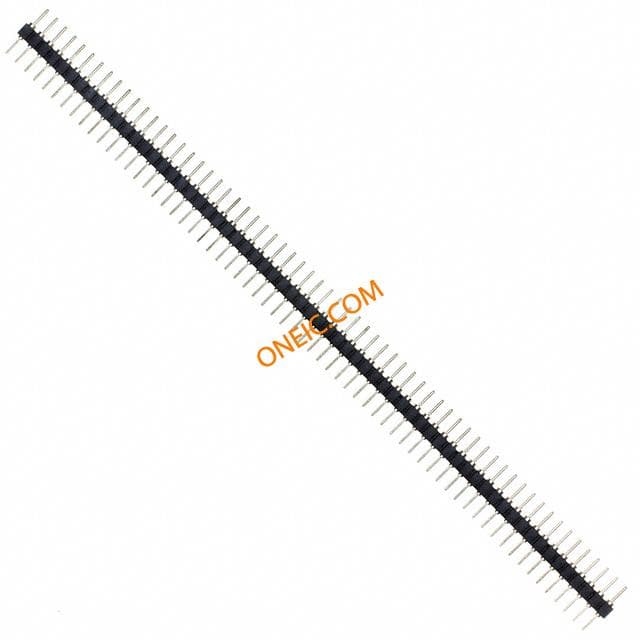

350-10-164-00-001000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN STRIP HEADER 64POS .100 Headers & Wire Housings 64P SLDR TAIL .100 BOARD TO BOARD CONNECTOR, HEADER, 64POS, 1ROW

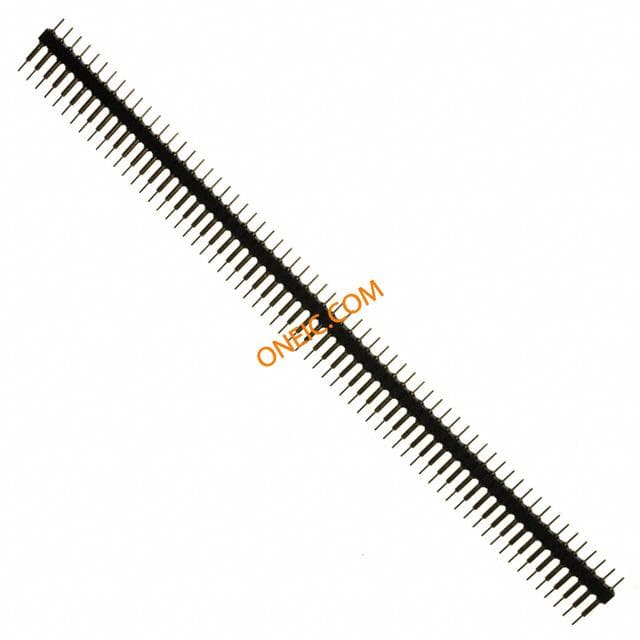

342-10-164-00-592000
