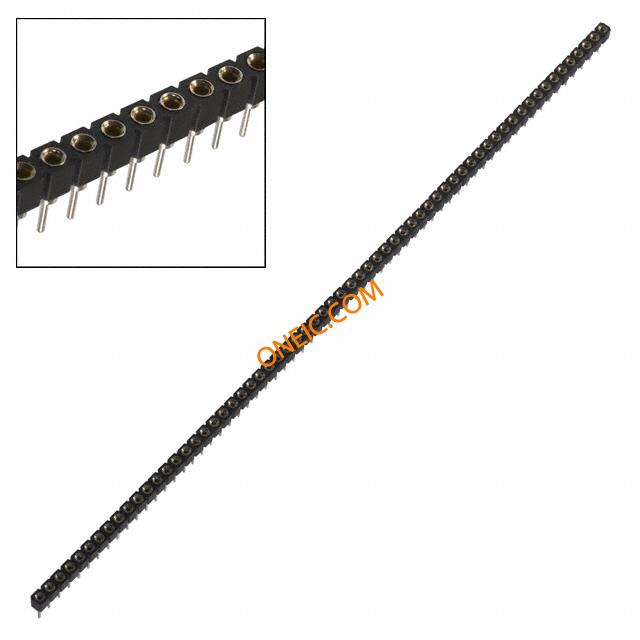

801-93-064-10-002000
| Manufacturer | |
| Description | Conn Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole CONN SOCKET 64POS .100 LOPROFILE Headers & Wire Housings 64 POS LOW PRO .1 CONNECTOR, SIP SOCKET, 64 POS |
| Category |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 3 |
| 工厂包装数量 | 3 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Not Compliant |
| 海关税号 | 85366930 | ||
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 4.5 A |
| 最小输入电压 | 150VDC|100VAC | 最小供电电压 | 150VDC/100VAC |

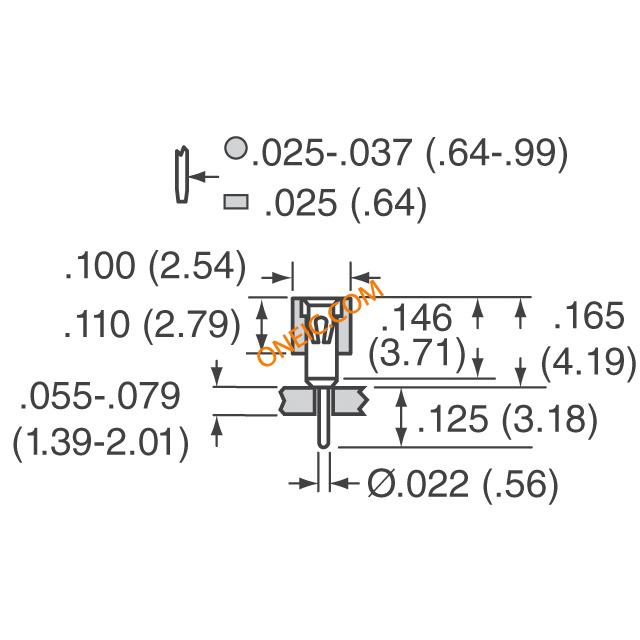

机械参数
| 颜色 | Black | 深度 | 2.54 mm |

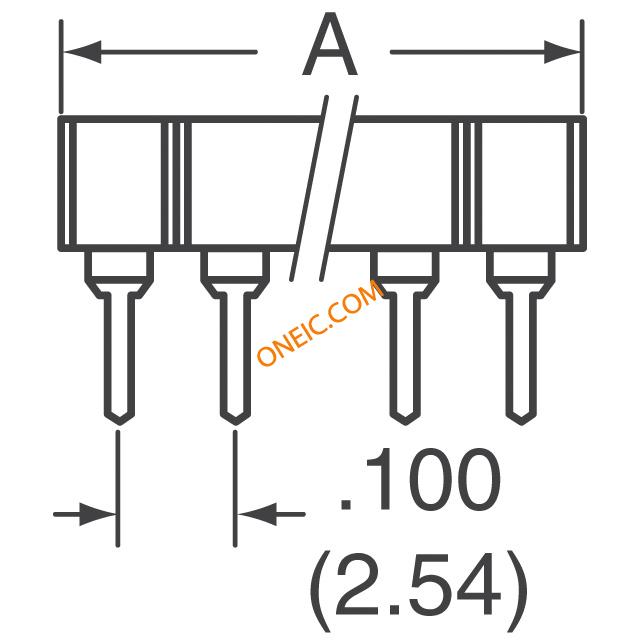

| 间距 | 0.100" (2.54mm) | 高度 | 4.19 mm |
| 重量 | 0 | 包装方式 | MUST SHIP IN TUBES! |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Beryllium Copper Alloy | 壳体材料 | Polychlorinated Terphenyl |
| 总长度 | 162.56 mm | 端接样式 | Through Hole |
| 第一触头极性 | Socket (Female) | 触点数 | 64 |
| 接触件端接 | :Through Hole Vertical | 位数 | 64 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | 801 | 已删除 | Not Compliant |
| 产品子类型 | Sockets - PCB | 加载位置数 | All |
| 适用产品/相关产品 | 801-43-064-10-002000 | ||
环境参数
| 工作温度 | -55C to 125C | ||
相关型号
800-10-064-30-001000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST SMD CONN HEADER .100" 64 POS SGL SMD Headers & Wire Housings 64P SINGLE ROW SMT HDR
800-10-064-20-001000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder RA Thru-Hole CONN HEADER 64POS .100 R/ANGLE Headers & Wire Housings 64 POS R/ANGLE .100
800-10-064-10-002000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER LOPROFILE 64POS .100 Single Row; Low Profile Pin Header; 64 pins Headers & Wire Housings 64 POS LOW PRO .1 BOARD TO BOARD CONNECTOR, HEADER, 64POS, 1ROW SingleRow,LowProfilePinHeader,64pins
800-10-064-61-001000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Press Fit ST CONN HEADER 64POS .100 L.104 Headers & Wire Housings 64 POSITION
800-10-064-62-001000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Press Fit ST CONN HEADER 64POS .100 L.143 Headers & Wire Housings 64 POSITION

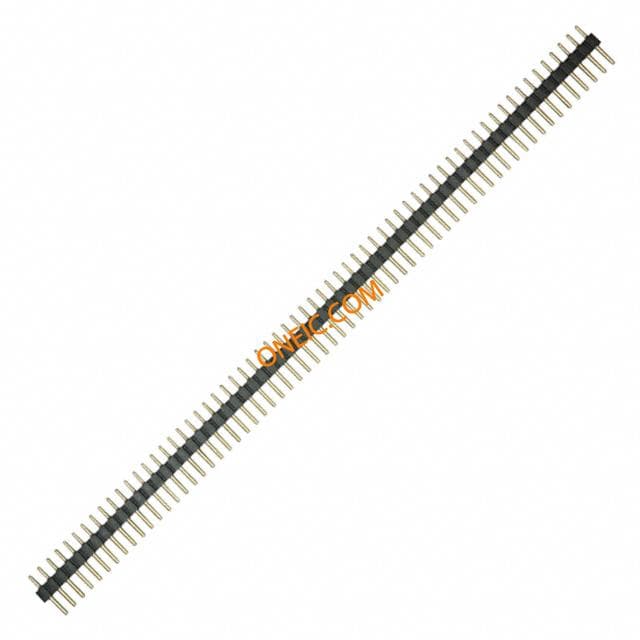

800-10-064-10-001000
