点击放大查看

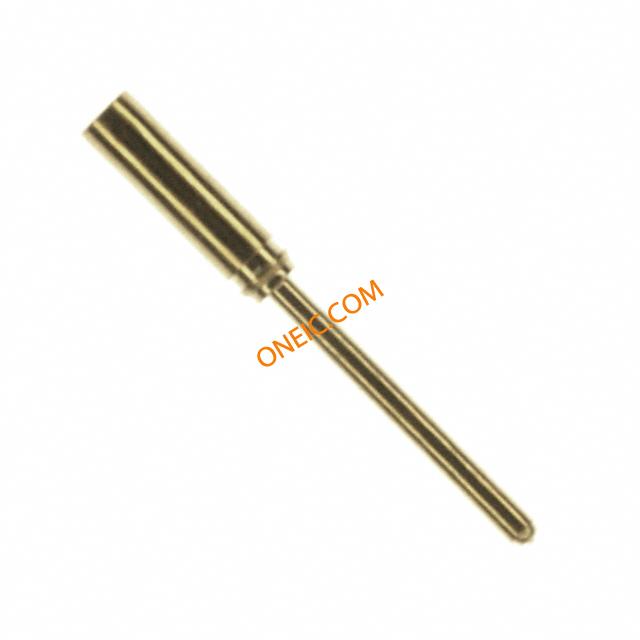

8210-0-15-15-04-27-04-0
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Receptacles | Product Category | Circuit Board Hardware - PCB |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 2 A |
Mechanical
| Depth | 0.66 | Height | 0.66 |
| Length | 0.15 in | Plating | Beryllium Copper |
| Material | Brass | Packaging | Bulk |
| Tail Type | Standard Tail | Shield Type | No |
| Termination | Press Fit | Contact Size | 4 |

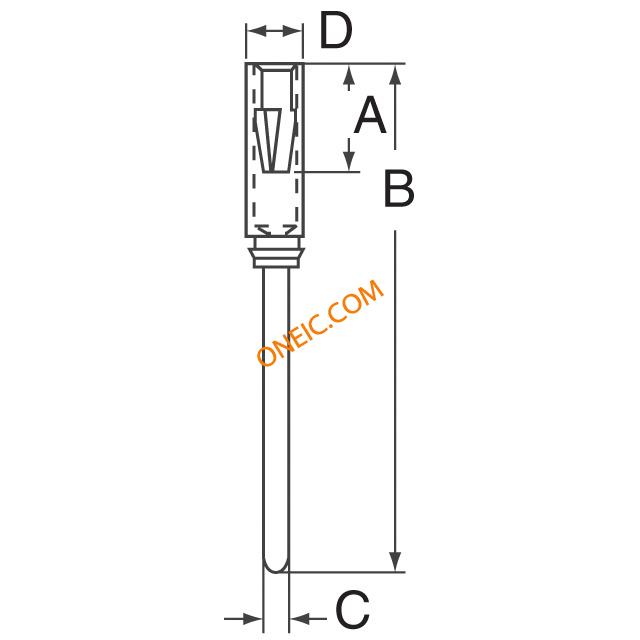

| Socket Depth | 0.080" (2.03mm) | Mounting Type | Through Hole |
| Tail Diameter | 0.012" (0.30mm) | Connector Type | Connector Socket |
| Contact Finish | Gold Over Nickel | Contact Material | Beryllium Copper Alloy |
| Length - Overall | 0.15 in | Diameter - Inside | 0.012 in |
| Pin Hole Diameter | 0.020" (0.52mm) | Diameter - Outside | 0.026 in |
| Accepts Pin Diameter | 0.008" ~ 0.013" (0.20mm ~ 0.33mm) | Mounting Hole Diameter | 0.024 in, 0.027 in |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Pins | Gender | SKT |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- Pin Receptacles (in.)
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
