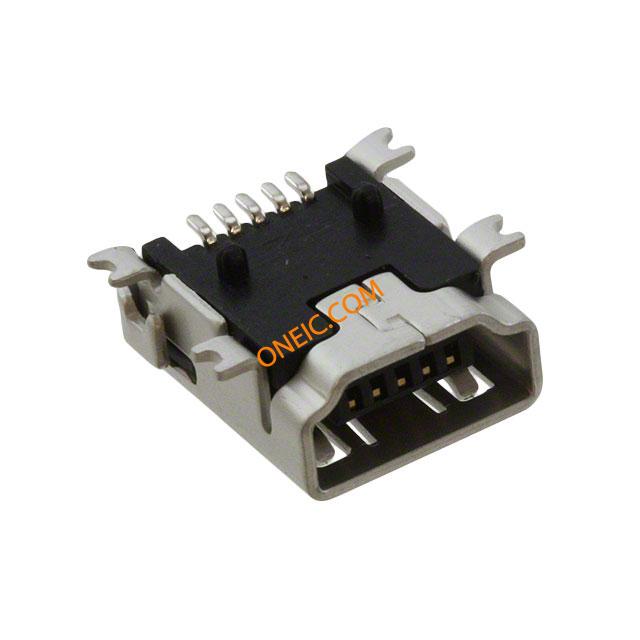

896-43-005-00-100001
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Mini USB Type A Connectors | Other Names | ED90342CT |
| Product Category | USB Connectors | Standard Package | 700 |
| Factory Pack Quantity | 700 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366930 | ||
Electrical
| Voltage - Supply | USB | Current Rating (Max) | 1 A |
| Insulation Resistance | 100 MOhms | Voltage - Input (Min) | 150VDC|100VAC |

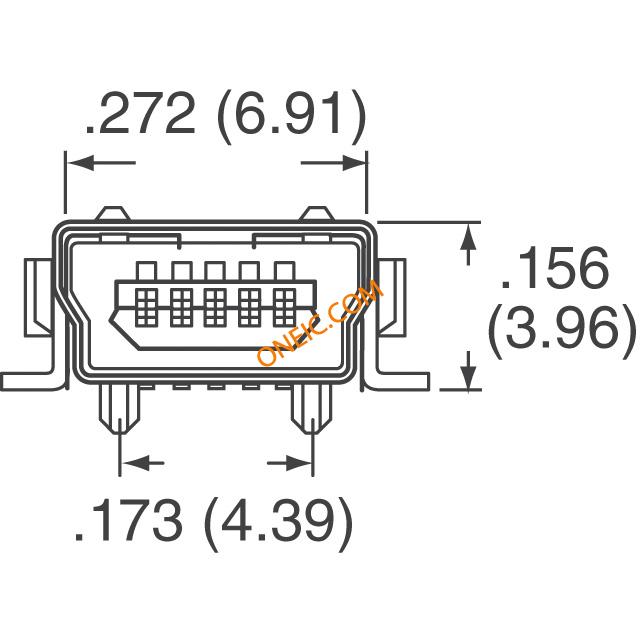

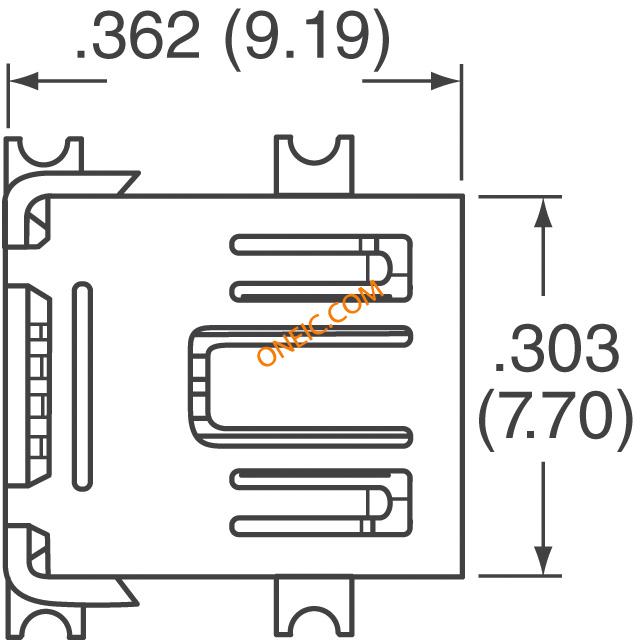

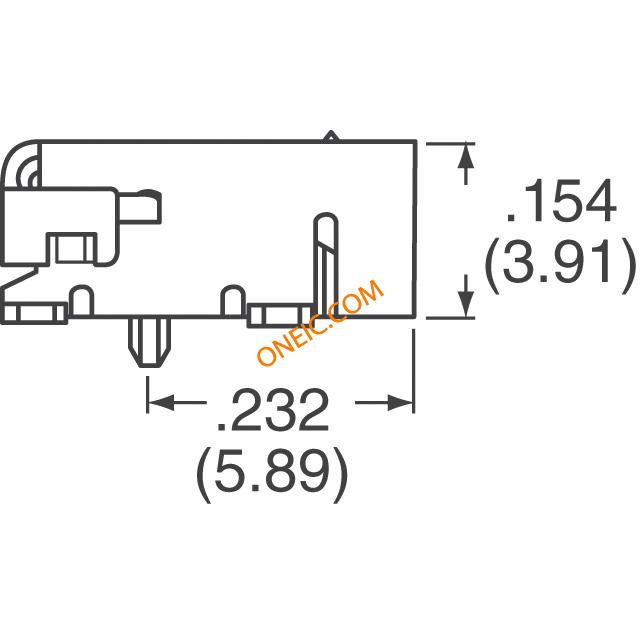

Mechanical
| Depth | 9.19 | Pitch | 0.78 |
| Height | 3.91 | Weight | 0 |
| Packaging | Reel | Termination | Solder |
| Mounting Type | Right Angle | Connector Type | USB - mini A |
| Contact Finish | Gold Over Nickel | Mounting Style | SMD/SMT |
| Contact Material | Copper Alloy | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 9.88 | Termination Style | Solder |
| Number of Contacts | 5 | Contact Termination | :Surface Mount Right Angle |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | USB Type A | Gender | Female |
| Series | :896 | Features | Board Guide |
| Specifications | USB 2.0 | Number of Ports | 1 |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 150-259794.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
