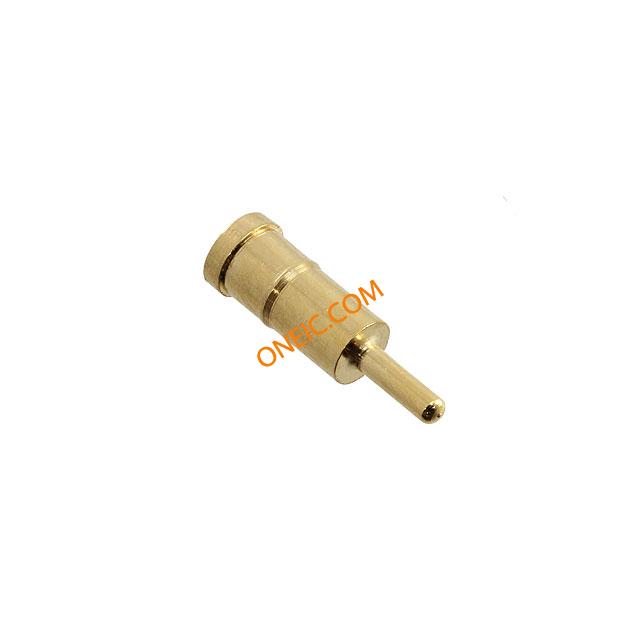

9324-0-15-15-23-27-04-0
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Receptacles | Product Category | Circuit Board Hardware - PCB |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 11.2 |
Mechanical
| Depth | 3.02 | Height | 3.02 |
| Length | 0.195 in | Plating | Gold over Nickel |
| Material | Brass | Packaging | Bulk |
| Tail Type | Standard Tail | Shield Type | No |
| Termination | Press Fit | Contact Size | 23 |
| Socket Depth | 0.200" (5.08mm) | Mounting Type | Through Hole |
| Tail Diameter | 0.041" (1.04mm) | Connector Type | Connector Socket |
| Contact Finish | Gold Over Nickel | Flange Diameter | 0.119" (3.02mm) |
| Contact Material | Beryllium Copper Alloy | Length - Overall | 0.195 in |
| Pin Hole Diameter | 0.088" (2.24mm) | Diameter - Outside | 0.119 in |
| Accepts Pin Diameter | 0.045" ~ 0.065" (1.14mm ~ 1.65mm) | Mounting Hole Diameter | 0.106 in |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Pins | Gender | SKT |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- Pin Receptacles (in.)
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
