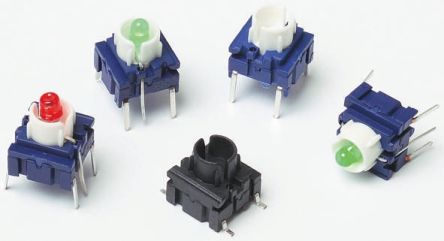

3FTL680
| Manufacturer | |
| Description | IP67 SP-NO Illuminated Red Keyboard Switch, 50 mA @ 24 V dc, -40 to +115°C SPMOMTHROHOLEREDLED Microswitch; 1-position; SPST-NO; 0.05A/24VDC; THT; LED; red; 2.5N MEC IP67 红色 单刀 - 常开 照明 键盘开关, 50 mA@ 24 V 直流, -40 → +115°C |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Backlight | red | Switch Function | 瞬间 |
| Switching Voltage | OFF-(ON) | Contact Resistance | 30mΩ |
| Current Rating (Max) | 50 mA @ 24 V 直流 | Insulation Resistance | 10MΩ |
| Switch Function/Rating | Momentary | Contact Rating (Current) | 50 mA @ 24 V dc |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC | ||
Mechanical
| Shape | round | Weight | 1.39 g |
| Lead Style | for PCB, straight | Light Color | 是 |
| Size - Body | 10 x 10mm | Height (Max) | 10.4mm |
| Mounting Type | THT | Actuator Color | Red |
| Operating Force | 2.5 N | Contact Material | Gold, Silver |
| Package Quantity | 350 | Size / Dimension | see |
| Pitch - Connector | 7.62x10.16mm | Number of Positions | 1-position |
| Contact Layout, Typical | SP-NO | Contact Material - Plating | silver plated |
| Torque - Rated (oz-in / mNm) | 2.5N | ||
Product Info
| Spg | 350 | Switch Type | microswitch |
| Illumination | Yes | Number of Units | 1 |
| Other Specifications | 1mm | Output Configuration | see |
| Contacts Configuration | SPST-NO | ||
Environmental
| Seal Rating | IP67 | Temperature | 260°C / 10 s |
| Mechanical Life | 10000000Operations | Ingress Protection | IP67 |
| Operating Temperature | +115°C | ||
