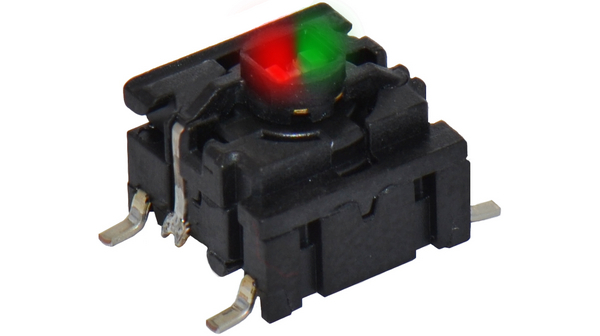

5GSH9358222
| Category |
对参数有疑问？问 AI 助手
Electrical
| LED | red/green | Voltage Rating | 24 |
| Number of Poles | 1 | Current Rating (Max) | 50 mA |
| Switch Function/Rating | Momentary | Contact Rating (Current) | 50 mA @ 24 V dc |
Mechanical
| Size | 10 x 10 x 8.5 mm | Actuator Type | Cap |
| Terminal Type | Solder, Tab | Actuation Force | 3.5 N |
| Operating Force | 3.5 N | Contact Material | SnCu+2μNI+1μAu, SnCu+2μNI+3μAg |
| Termination Style | SMD | Contact Layout, Typical | SP |
Product Info
| Switch Type | Momentary function | Illumination | Yes |
Environmental
| Seal Rating | IP67 | Mechanical Life | 10000000Cycles |
| Operating Temperature | +160°C | ||
