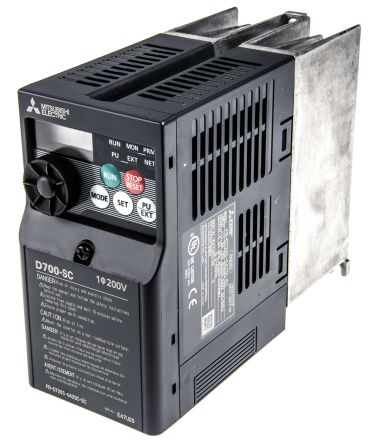

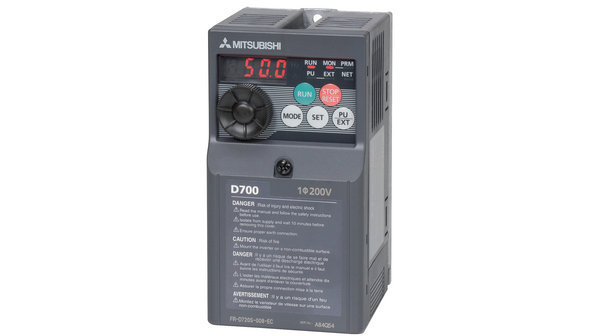

FR-D720S-042SC-EC
| Category |
对参数有疑问？问 AI 助手
Electrical
| Frequency | ModBus | Input Type | 5 x 24 VDC |
| Filter Type | 否 | Power - Rated | 0.75 kW |
| Power - Output | 0.75 kW | Voltage Rating | Single phase |
| Voltage - Output | 1 x 0...10 VDC | Voltage - Supply | 200 → 240 V ac |
| Digital I/O Lines | 1 x open-collector output | Analog Input:Output | 1 x 0...(5) 10 VDC or 4...20 mA DC |
| Overload Protection | 150% IN for 60 s | Current Rating (Max) | 4.2 A |
| Frequency - Output 1 | 0.2 → 400Hz | Voltage - Supply (Min) | 200...240 VAC |
| Phase Noise Typ (dBc/Hz) | 1 | Voltage - Protection Level (VP) (2416) | IP 20 |
Mechanical
| Width | 68mm | Torque | >150% @ 1 Hz |
| Depth - Overall | 162.5mm | Width - Overall | 68mm |
| Length - Overall | 128mm | ||
Product Info
| Series | FR-D720S | Includes | Yes |
| File Type | ModBus | Relay Type | 1 change-over contact, 250 VAC |
| Control Side Connection | Yes | For Use With/Related Products | Safety PLC |
Environmental
| Seal Rating | IP20 | Temperature | -10 → +40°C |
| Ingress Protection | IP20 | Operating Temperature | -10 → +40°C |
