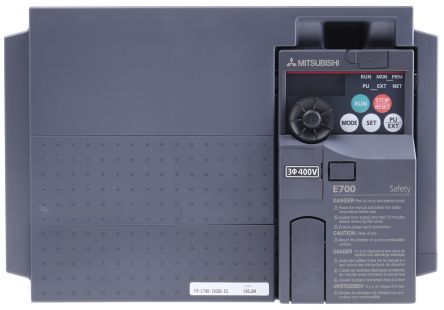

FR-E740-120SC-EC
| Category |
对参数有疑问？问 AI 助手
Electrical
| Frequency | CANOpen, CC Link, DeviceNet, Ethernet, LonWorks, Profibus DP, RS485, USB | Input Type | 6 |
| Power - Rated | 5.5 kW | Power - Output | 5.5 kW |
| Voltage Rating | 3-phase | Voltage - Output | 1 x 0...10 V |
| Voltage - Supply | 380 → 480 V ac | Digital I/O Lines | 2 |
| Analog Input:Output | 1 x 0...(5) 10 VDC or 4...20 mA DC | Overload Protection | 200% for 3 sec, 150% for 60 sec |
| Current Rating (Max) | 12 A | Frequency - Output 1 | 0.2 → 400Hz |
| Voltage - Supply (Min) | 380...480 VAC | Phase Noise Typ (dBc/Hz) | 3 |
| Voltage - Protection Level (VP) (2416) | IP 20 | ||
Mechanical
| Width | 220mm | Torque | 200% @ 0.5 Hz |
| Depth - Overall | 153mm | Width - Overall | 220mm |
| Length - Overall | 150mm | ||
Product Info
| Series | FR-E740 | File Type | CANOpen、CC Link、DeviceNet、以太网、LonWorks、Profibus DP、RS485、USB |
| Relay Type | 1 | Control Side Connection | Yes |
| For Use With/Related Products | FR-E700 SC Series | ||
Environmental
| Seal Rating | IP20 | Temperature | -10 → +50°C |
| Ingress Protection | IP20 | Operating Temperature | -10 → +50°C |
