15-06-0066
| Manufacturer | |
| Description | CONN PLUG 6POS W/PANEL MNT EARS Headers & Wire Housings 4.20MM PLUG HSG 6P 2ROW W/PNL MT EARS 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 6 Circuits CONNECTOR, HOUSING, PLUG, 6POS Connector: wire-board; Series: Mini-Fit BMI; plug; male; PIN:6 |
| Category |
Business
| Tradename | Mini-Fit BMI | Part # Aliases | 0015060066 42475-0621 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Current Rating (Max) | 11 A, 8 A | Connector - Voltage Input | Male |
Mechanical
| Color | Natural | Pitch | 0.165" (4.20mm) |
| Weight | 0 | Packaging | Bulk |
| Orientation | straight | Row Spacing | 0.165" (4.20mm) |
| Contact Type | Male Pin | Pitch - Post | 4.2mm |
| Mounting Type | Panel Mount, Snap-In | Connector Type | Plug |
| Mounting Style | for cable | Number of Rows | 2 |
| Housing Material | Nylon | Package Quantity | 1 |
| Connector - Cable | plug | Number of Contacts | 6 |
| Contact Termination | Crimp | Number of Positions | 6 |
| 1st Connector Mounting Feature | 2x3 | ||
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Plug Housing | Series | 42475 |
| Product Type | Wire Housings | Adapter Series | Mini-Fit BMI |
| Number of Units | 100 | Application Specifics | Power, Wire-to-Wire, Wire-to-Board |
| For Use With/Related Products | :Mini-Fit Plus HCS 46012, Mini-Fit 5558 Series Male Crimp Terminals | ||
Documents & Media
Similar Parts
0039012065
molex
Conn Housing F 6 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 6POS DUAL
0039000121
molex
Contact PIN Crimp ST Cable Mount Bag MINIFIT TERM CRP MALE L BS TIN
0039012060
molex
Conn Housing RCP 6 POS 4.2mm Crimp ST Bag CONN RECEPT 6POS DUAL
0039000219
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG 30GOLD CONN TERM MALE 18-24AWG GOLD
0039000061
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN
39-00-0224
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 16AWG GOLD CRIMP Headers & Wire Housings CRIMP TERMINAL 16 AWG
39-00-0088
Molex
Headers & Wire Housings PIN 28-22 AWG BULK CONN TERM MALE 22-28AWG GOLD Contact PIN Crimp ST Cable Mount Loose Piece
0460123241
Molex
CONTACT PIN CRIMP ST CABLE MOUNT REEL MF PLUS HCS CRIMP TERM MALE
0460121242
Molex, LLC
. 0460121242 - Pin Contact Gold 18-20 AWG Crimp from Molex. from now!
0039000049
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-28AWG TIN
0460121142
Molex
Contact PIN Crimp ST Cable Mount Bag MF PLUS HCS CRIMP TERM MALE
0039000128
Molex
Contact PIN Crimp ST Cable Mount Reel MINIFIT TERM CRP MALE C BZ TIN

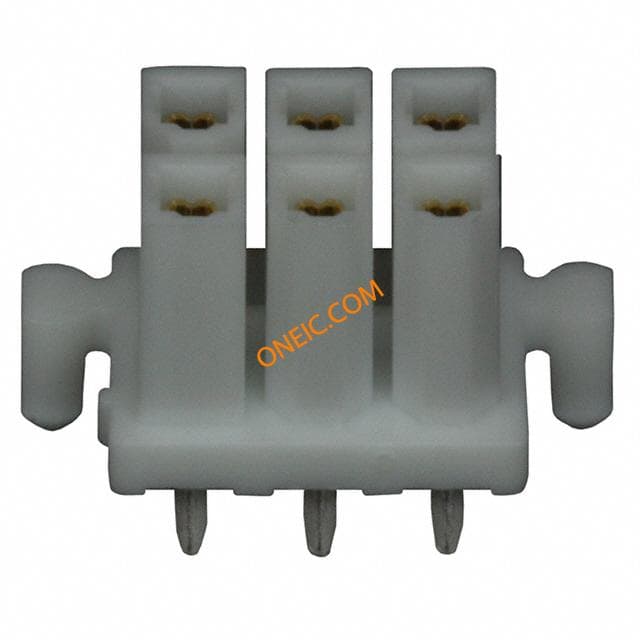

15-24-7063
Molex Connector Corporation
CONN HEADER 6POS 4.2MM STR GOLD Headers & Wire Housings VERT DUAL RCPT HDR 6 PCB snapin peg locks Conn Power RCP 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray

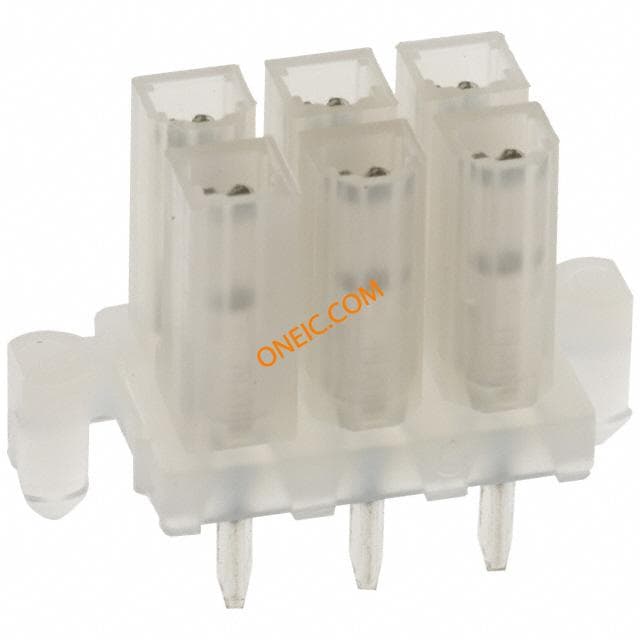

15-24-7060
Molex Connector Corporation
CONN HEADER 6POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 6P DUAL ROW Conn Wire to Board RCP 6 POS 4.2mm Solder ST Thru-Hole Tray Conn Power RCP 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray MINI-FIT BMI REC HDR ASSY V

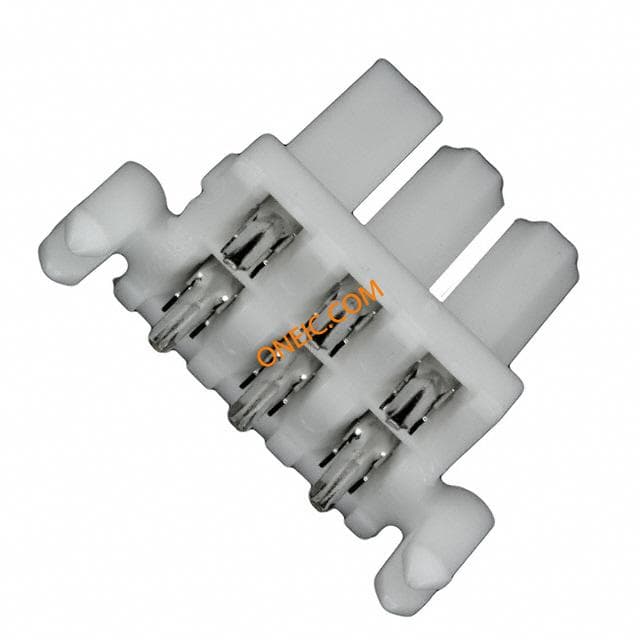

15-24-7061
Molex Connector Corporation
CONN HEADER 6POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 6P DUAL ROW Conn Power RCP 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray
15-06-0060
Molex Connector Corporation
CONN RECEPT 6POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-2,6w Headers & Wire Housings RECPT DUAL ROW 6POS w/panel mount ears Conn Housing F 6 POS 4.2mm Crimp ST Panel Mount Bag MINIFIT BMI RCPT/PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 6 路 直 母 面板安装 压接连接器外壳

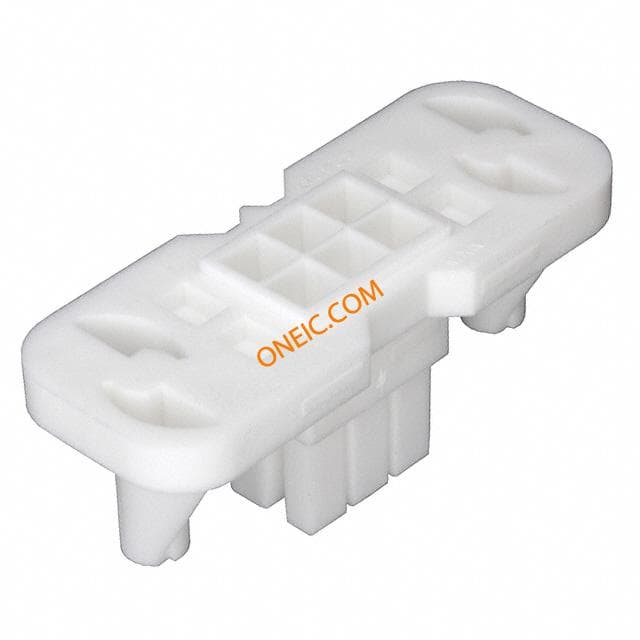

15-06-0061
