15-06-0080
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Mini-Fit BMI | Part # Aliases | 0015060080 42474-0811 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 1200 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Current Rating (Max) | 12 A, 7 A | Connector - Voltage Input | Crimp |
Mechanical
| Color | Natural | Depth | 19.6mm |
| Pitch | 0.165" (4.20mm) | Width | 17.3mm |
| Length | 48.6mm | Packaging | Bulk |
| Orientation | 直 | Row Spacing | 0.165" (4.20mm) |
| Contact Form | Female Socket | Contact Type | Female Socket |
| Lead Spacing | 0.165" (4.20mm) | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Mounting Style | Wire | Number of Rows | 2 |
| Housing Material | Nylon | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 8 |
| Contact Termination | Crimp | Number of Positions | 8 |
Product Info
| Note | Contacts Not Provided | Type | Receptacle Panel Mount |
| Gender | Female | Series | 42474 |
| CAD Drawing | 3D CAD Model | Manufacturer | Mini-Fit BMI |
| Product Type | Receptacles / Sockets - Housings | Number of Circuits | 8 |
| Base Product Number | 42474 | Output Configuration | Panel Mount |
| For Use With/Related Products | Mini-Fit BMI Receptacle | ||
Documents & Media
PDF Document
Similar Parts
0039000038
molex
$0.1768
Details
0039000186
molex
$3.0872
Details
0039000207
molex
$0.2591
Details
0442810003
Molex, LLC
$819.6434
Details
0039000195
molex
$1.2723
Details

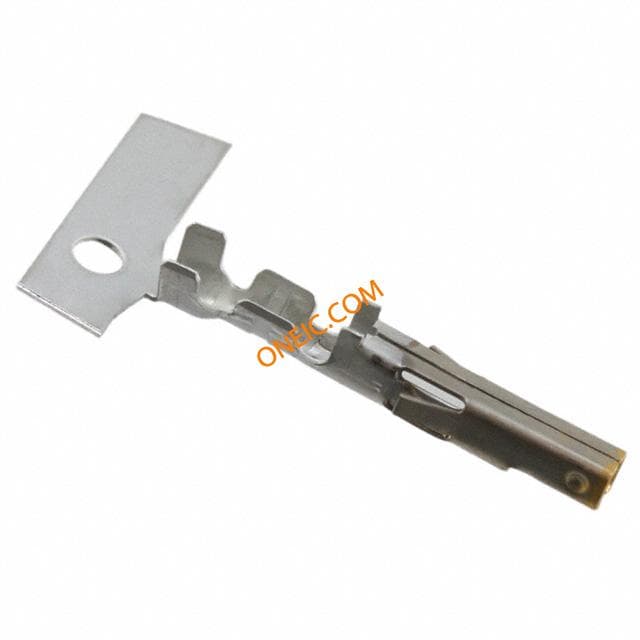

0039000183
molex
$2.6756
Details
0039000213
molex
$0.5874
Details
0039000180
molex
$2.2508
Details
39-00-0167
Molex
$4.0800
Details
39-00-0055
Molex
$1.0880
Details
39-00-0168
Molex
$5.6630
Details

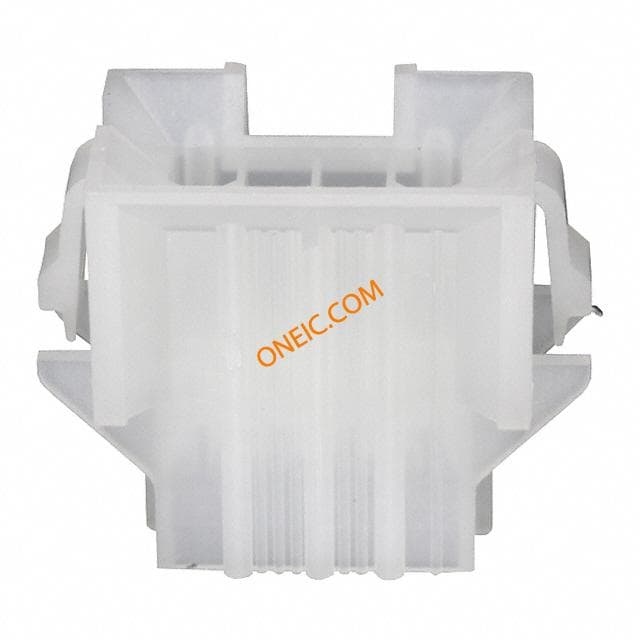

15-06-0085
molex
$2.9240
Details
0039000182
Molex
$2.1508
Details
0039000217
Molex
$0.6283
Details
0039000153
Molex
$4.7260
Details
0039000155
Molex
Details
39-00-0154
molex
$10.6243
Details

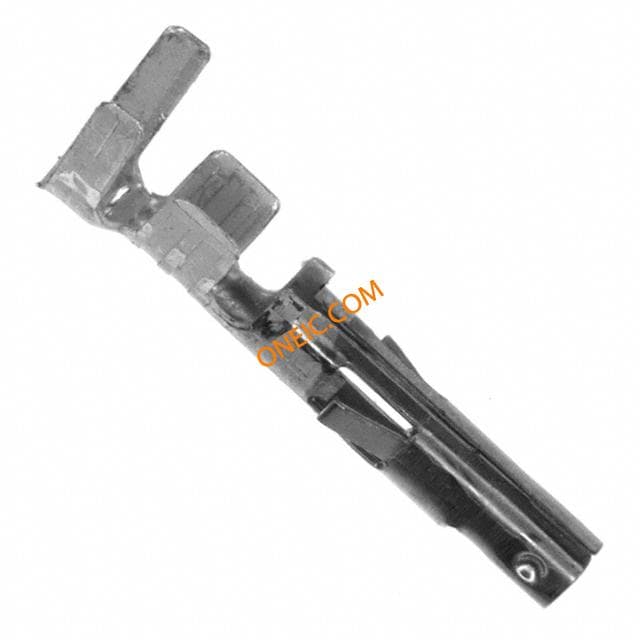

39-00-0158
