点击放大查看
19-09-1159
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Standard .093 in | Part # Aliases | 0019091159 3191-15R1 |
| Product Category | Pin & Socket Connectors | Standard Package | 10 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Current Rating (Max) | 9 A | ||
Mechanical
| Color | Natural | Pitch | 0.264" (6.71mm) |
| Weight | 0.009 | Packaging | Bulk |
| Row Spacing | 0.264" (6.71mm) | Contact Type | Male or Female |
| Body Material | :PA Polyamide (Nylon) 6/6 | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Mounting Style | SMD/SMT | Number of Rows | 3 |
| Cord Termination | :Crimp | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male), Socket (Female) |
| Number of Contacts | 15 | Contact Termination | Crimp |
| Number of Positions | 15 | ||
Product Info
| Note | Contacts Not Provided | Series | 3191 |
| Manufacturer | 3191 Series | Product Type | Receptacle Housings |
| For Use With/Related Products | :1189, 1190, 1434, 2605 Crimp Terminals | ||
Documents & Media
PDF Document
Similar Parts
0002091119
molex
$0.3876
Details
0002092116
molex
$0.2656
Details
0002092118
molex
$0.3808
Details
0002092101
Molex
$0.1809
Details
0002092103
molex
$0.4216
Details
0039000295
molex
$4.2214
Details
02-09-5132
molex
$2.8560
Details
02-09-6145
Molex
$4.2500
Details
02-09-1139
Molex
$0.6358
Details
0039000289
Molex
$0.9513
Details

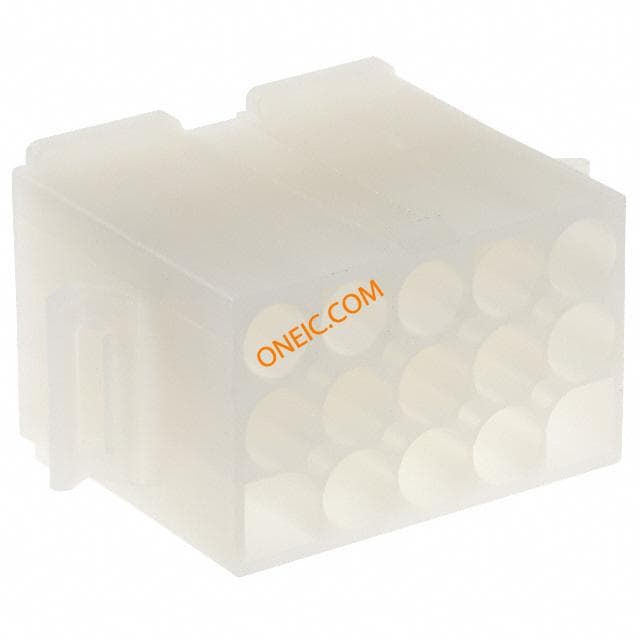

19-09-2158
Molex Connector Corporation
$3.1280
Details
19-09-2159
Molex Connector Corporation
$2.3120
Details

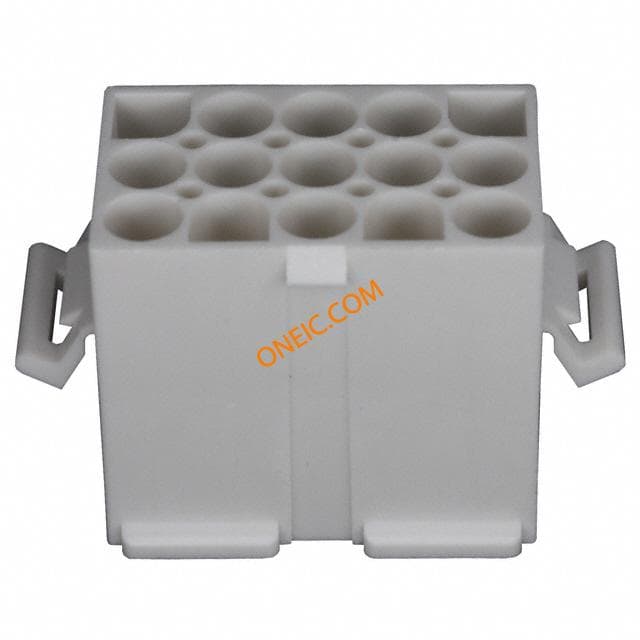

19-09-2157
