22-05-2021
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | KK | Part # Aliases | 0022052021 A-4094-02A102 |
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 250 V | Number of Poles | :2 |
| Voltage - Working | :250V | Contact Resistance | :20mohm |
| Current Rating (Max) | 4A | ||
Mechanical
| Color | White | Pitch | 0.100" (2.54mm) |
| Weight | 0.017 | Material | :Nylon |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :2.54mm |
| Mounting Type | Through Hole, Right Angle | Release Force | :0.57N |
| Connector Type | Header, Unshrouded | Contact Finish | Tin |
| Number of Rows | 1 | Insertion Force | :2N |
| Contact Material | Brass | Housing Material | Nylon |
| Termination Style | Through Hole | Color - Connectors | :White |
| Number of Contacts | 2 | Contact Termination | :Solder |
| Number of Positions | 2 | Contact Length - Mating | 0.369" (9.37mm) |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Unshrouded Header | Gender | :Header |
| Series | 4094 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :+75°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
0022012027
molex
$0.1632
Details
0022013027
molex
$0.2924
Details
0010112023
molex
$0.4638
Details
0022012021
molex
$0.3488
Details
44812-0020
molex
$17.1460
Details
22-01-2025
molex
$0.6766
Details

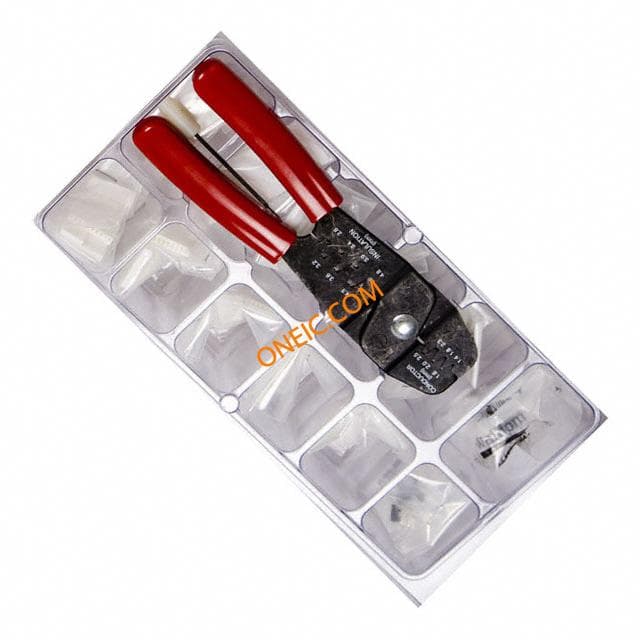

76650-0009
