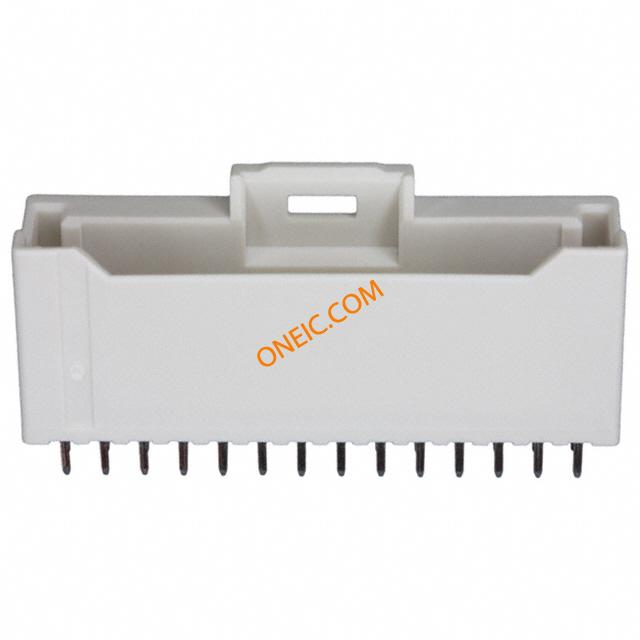

501645-2820
| Manufacturer | |
| Description | CONN HEADER 28POS 2MM VERT TIN Headers & Wire Housings IGRID 28P V HDR DUL ROW W/PCB LOC 2.00mm Pitch iGrid™ Wire-to-Board Header, Dual Row, Vertical, with PCB Locator, 28 Circuits, Lead-Free |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | iGrid | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 1 | 工厂包装数量 | 490 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2 A |
机械参数
| 颜色 | Natural | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tray | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Latch Holder |
| 排数 | 2 | 触头材料 | Brass |
| 端接样式 | Through Hole | 触点数 | 28 |
| 位数 | 28 | ||
产品信息
| 系列 | 501645 | 产品特性 | Board Guide |
| 产品子类型 | Plugs - Housings | 加载位置数 | All |
