点击放大查看
51021-0400
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | PicoBlade | Part # Aliases | 0510210400 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 2000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :MOLEX - PicoBlade 51021 Series | Voltage Rating | :125V |
| Voltage - Working | :125V | Contact Resistance | :20mohm |
| Current Rating (Max) | :1A | Insulation Resistance | :100Mohm |
Mechanical
| Depth | 3.95mm | Pitch | 1.25mm |
| Width | 3.2mm | Length | 6.75mm |
| Weight | 0.01 | Mounting Type | Straight |
| Contact Finish | :Tin | Mounting Style | Wire |
| Number of Rows | 1 | Contact Material | :Phosphor Bronze |
| Housing Material | PBT | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 4 |
| Contact Termination | :Crimp | 1st Connector Mounting Type | :PC Board |
Product Info
| Gender | Female | Series | 51021 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | PicoBlade Wire-to-Board Connector, PicoBlade Wire-to-Wire Connector | ||
Environmental
| Operating Temperature | :85°C | ||
Documents & Media
PDF Document
Similar Parts
06-66-0013
Molex
$5.5760
Details
06-66-0015
molex
$27.1800
Details
53261-0471
molex
$0.5236
Details
50079-8000
molex
$0.0666
Details
53398-0471
Molex Connector Corporation
$1.3328
Details
76650-3017
Molex
$1231.4120
Details

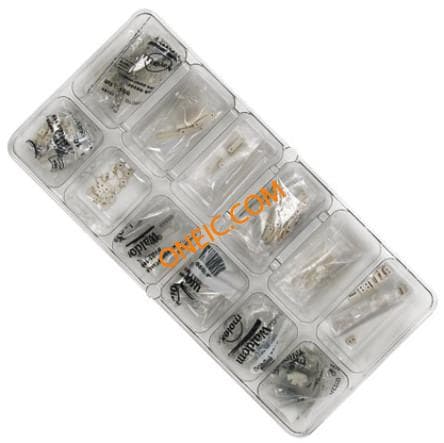

76650-3018
