51110-0450
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Milli-Grid | Part # Aliases | 0511100450 |
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :MOLEX - Milli-Grid 51110 Series | Voltage Rating | :125V |
| Contact Resistance | :25Mohm | Dielectric Strength | :500V |
| Current Rating (Max) | 500 mA | Insulation Resistance | :1000Mohm |
| Connector - Voltage Input | Female | ||
Mechanical
| Color | Black | Depth | 7mm |
| Pitch | 0.079" (2.00mm) | Width | 4.8mm |
| Length | 4.2mm | Weight | 0.004 |
| Packaging | Bulk | Row Spacing | 0.079" (2.00mm) |
| Termination | :Crimp | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | :- | Number of Rows | 2 |
| Package / Case | :Black G.F. Polyester | Contact Material | :- |
| Housing Material | PET | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Crimp Housing |
| Gender | Female | Series | 51110 |
| CAD Drawing | 3D CAD Model | Product Type | Wire Housings |
| Application Specifics | Signal, Wire-to-Board | For Use With/Related Products | Milli-Grid Connector |
Documents & Media
PDF Document
PDF Document
Similar Parts
0503948100
molex
$0.7616
Details
0503948200
molex
$0.9044
Details

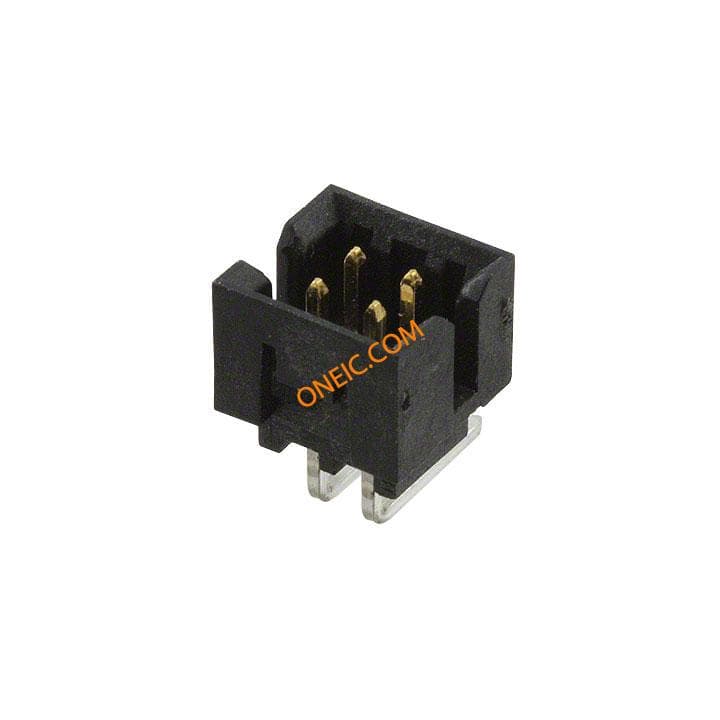

0878330431
molex
$4.4472
Details
0503948052
molex
$0.5258
Details
0503948051
molex
$0.3975
Details
50394-8100
Molex
$0.5984
Details

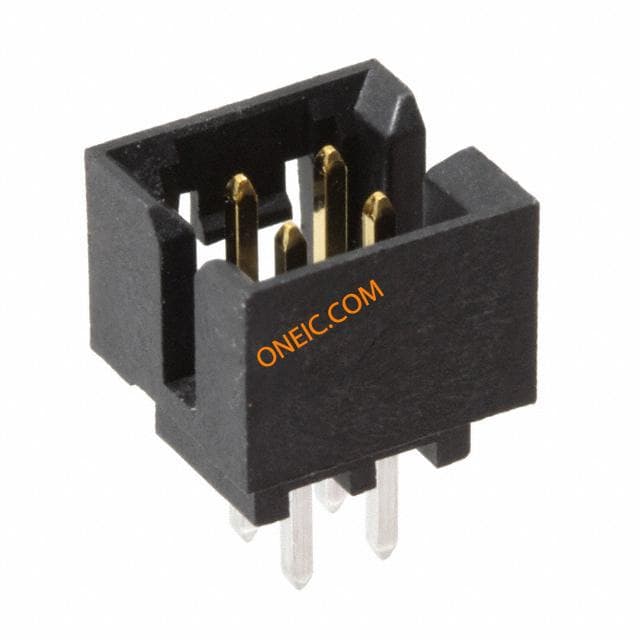

0878310441
Molex
$5.0130
Details
0503948400
Molex
$0.7140
Details

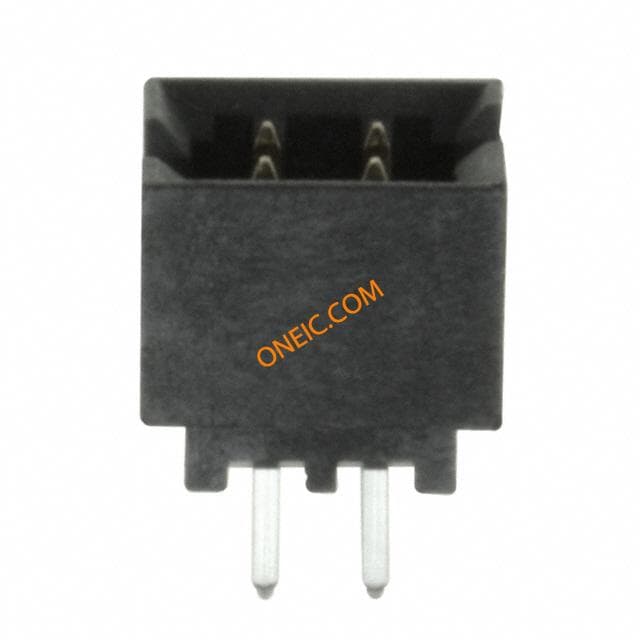

87831-0420
Molex Connector Corporation
$4.8280
Details
87760-0416
Molex Connector Corporation
$1.7680
Details
87833-0420
Molex Connector Corporation
$2.6044
Details

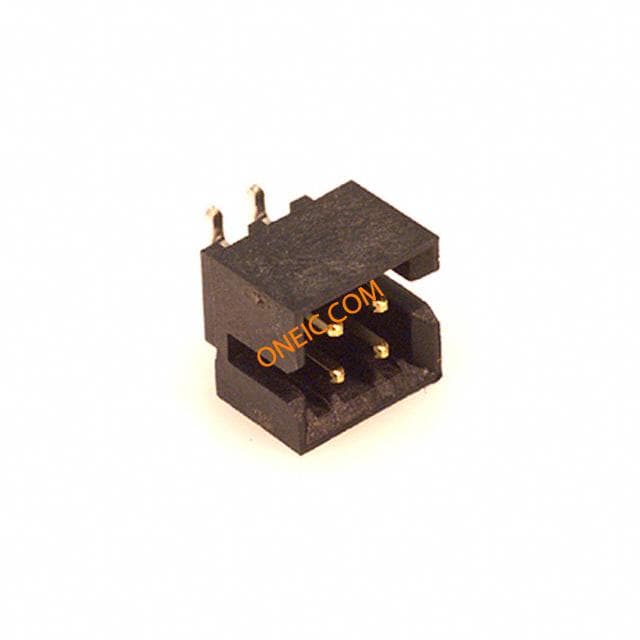

87832-0420
