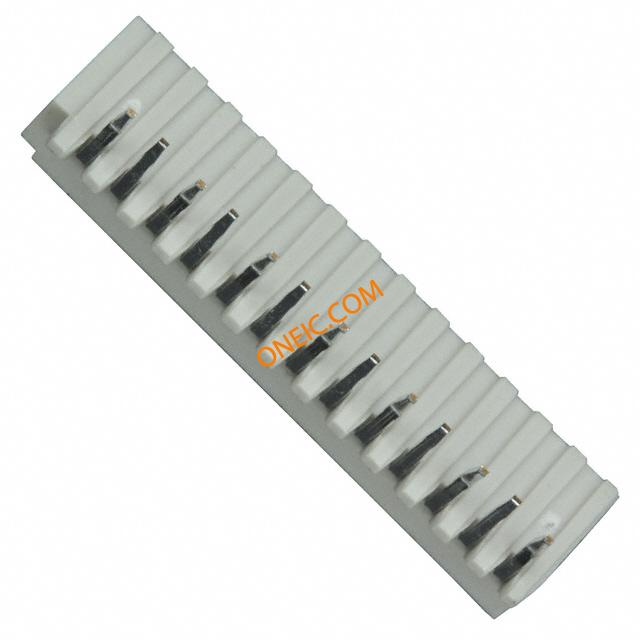

53015-1310
| Manufacturer | |
| Description | CONN HEADER 2MM 13POS RT ANG TIN Headers & Wire Housings 2.00 MM WIRE-TO-BOAR Conn Shrouded Header HDR 13 POS 2mm Solder RA Thru-Hole Bag |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | MicroBlade | 零件号别名 | 0530151310 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 2 A |
机械参数
| 颜色 | White | 间距 | 0.079" (2.00mm) |
| 包装方式 | Bulk | 端接方式 | Press-Fit |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 13 | 位数 | 13 |
| 接触长度 - 配合 | 0.122" (3.10mm) | 接触镀层厚度 | 35µin (0.90µm) |
产品信息
| 类型 | Shrouded | 系列 | 53015 |
| 产品子类型 | Headers | 加载位置数 | All |
Documents & Media
PDF Document
