70107-0008
| Manufacturer | |
| Description | CONN HOUSING MALE 9POS .100 2.54mm,housing,Cgrid,SL,A,w/o ears,9w Headers & Wire Housings HSG 9P W/O EARS SINGLE ROW 2.54mm Pitch SL™ Wire-to-Wire Crimp Housing, Single Row, Version A, without Mounting Ears, 9 Circuits Molex SL 系列 1 行 2.54mm 节距 9 路 直 母 压接连接器外壳 |
| Category |
商业参数
| 商标名 | SL | 零件号别名 | 0701070008 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 450 | ||
合规参数
| RoHS | Compliant | ||
机械参数
| 颜色 | Black | 深度 | 24.26mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 6mm |
| 长度 | 24.89mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 紧固类型 | Latch Holder | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | PET |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 70107 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 基础产品编号 | 70107 |
| 适用产品/相关产品 | SL Wire-to-Wire Connector | ||
Documents & Media
相关型号
0016020114
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-24AWG TIN
0016020077
molex
Contact PIN Crimp ST Cable Mount Reel CONN PIN 24-30AWG CRIMP 15GOLD
0016020107
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 22-24AWG TIN
0050579409
molex
Conn Housing RCP 9 POS 2.54mm Crimp ST Panel Mount Bag CONN HOUSING 9POS .100 W/LATCH
0016020110
molex
Contact PIN Crimp ST Cable Mount Bag CONN PIN 24-30AWG CRIMP 30GOLD

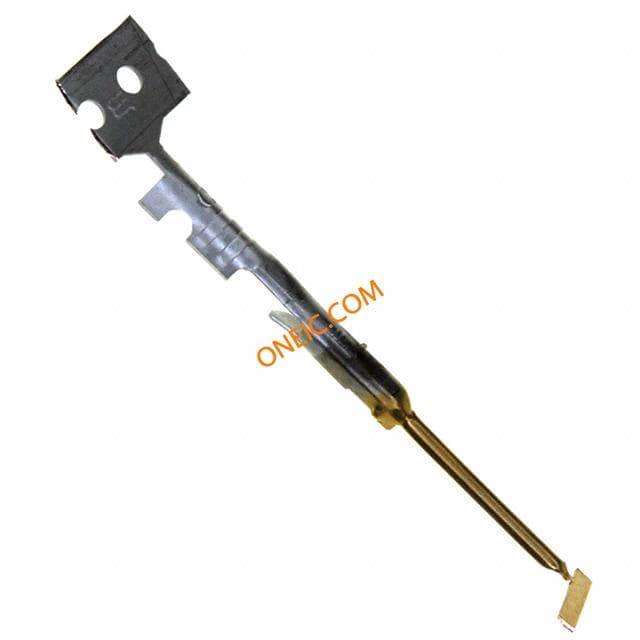

0016020081
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 22-24AWG GOLD
0016020115
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-24AWG GOLD CONTACT, MALE, 24-22AWG, CRIMP
0016020108
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG TIN
14-60-0092
molex
Conn IDC Connector F 9 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 9POS .100 TIN 24AWG
0016020109
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag
0016020117
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-24AWG GOLD

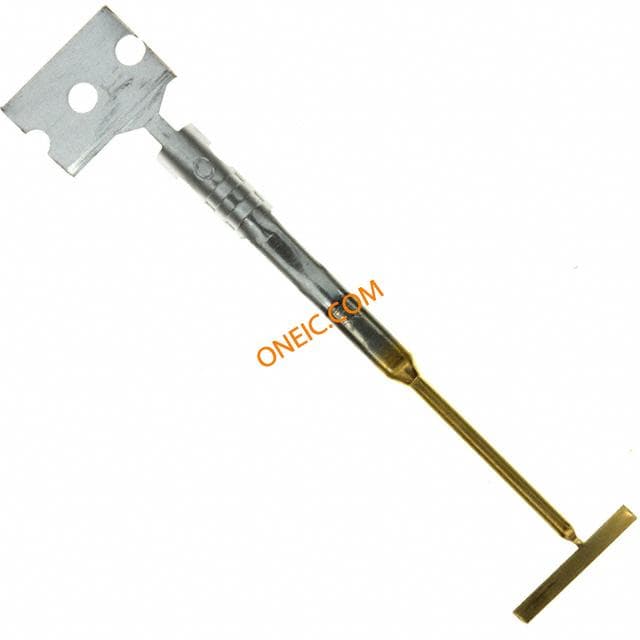

0016020116
Molex
Contact PIN Crimp ST Cable Mount Reel CONN PIN 22-24AWG CRIMP 30GOLD

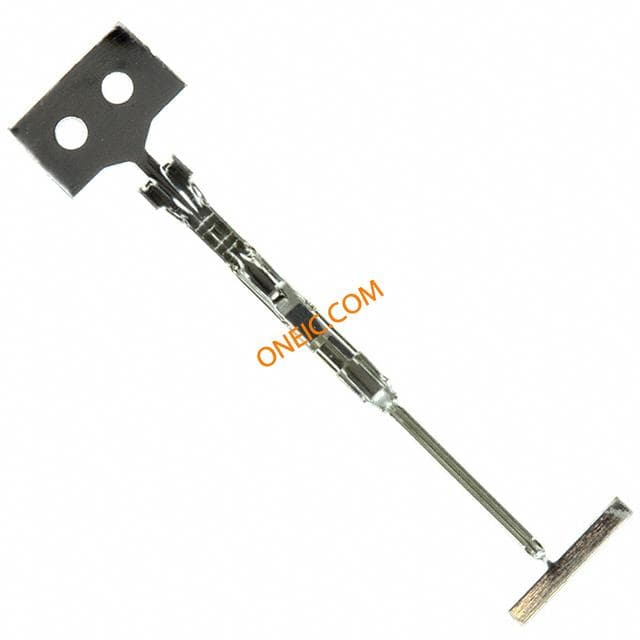

0016020105
