70543-0050
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | SL | Other Names | 0705430050 |
| Part # Aliases | 0705430050 | Product Category | Headers & Wire Housings |
| Standard Package | 1 | Factory Pack Quantity | 576 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Termination Style | Through Hole |
| Number of Contacts | 16 | Number of Positions | 16 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 150µin (3.81µm) |
Product Info
| Type | Shrouded | Series | 70543 |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 40 C to + 105 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
14-60-0162
molex
$6.7266
Details
14-56-2161
molex
$9.8110
Details

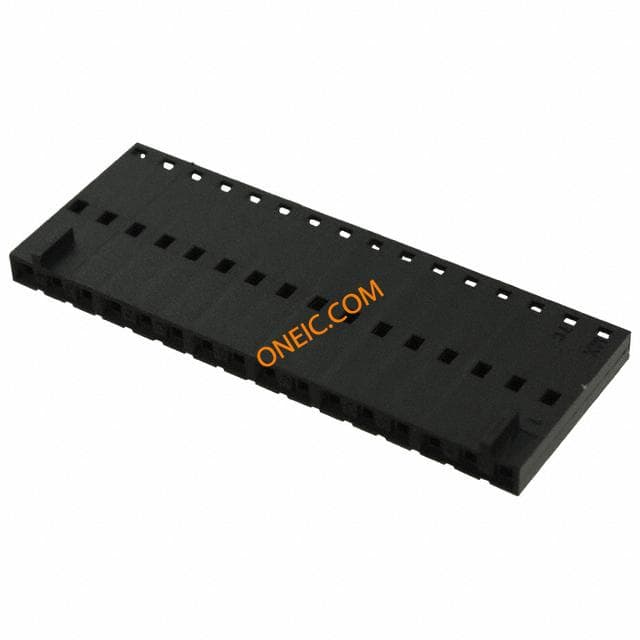

0050579216
Molex
$4.7757
Details
14-60-0161
molex
$18.8360
Details

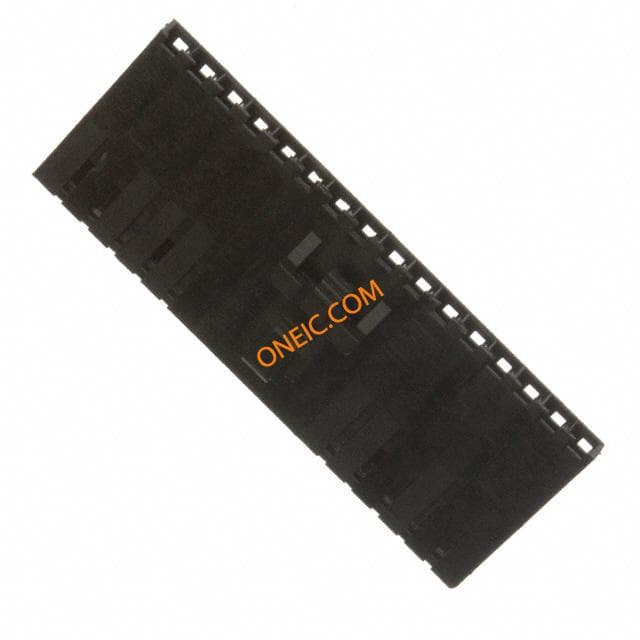

50-57-9416
