70543-0054
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | SL | Other Names | 0705430054 |
| Part # Aliases | 0705430054 | Product Category | Headers & Wire Housings |
| Standard Package | 1 | Factory Pack Quantity | 480 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Number of Rows | 1 | Housing Material | Thermoplastic |
| Termination Style | Through Hole | Number of Contacts | 20 |
| Number of Positions | 20 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 150µin (3.81µm) | ||
Product Info
| Type | Shrouded | Series | 70543 |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
PDF Document
PDF Document
Similar Parts
14-60-0202
molex
$8.6938
Details
15-47-4203
molex
$14.2596
Details

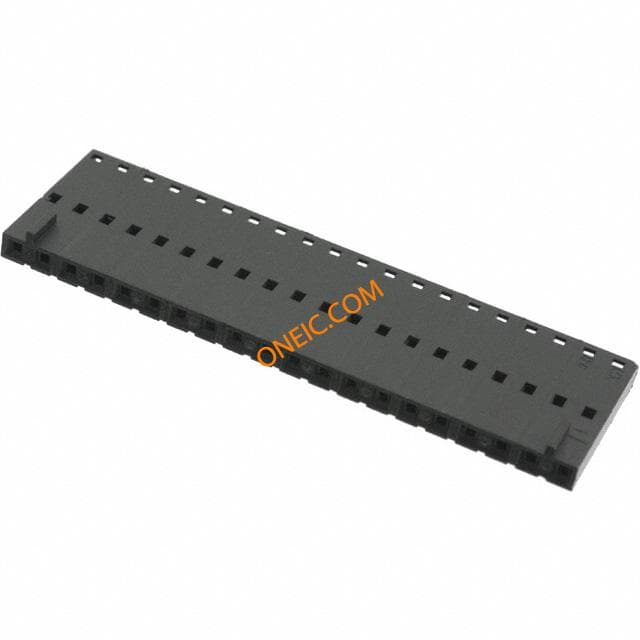

0050579220
Molex
$3.8230
Details

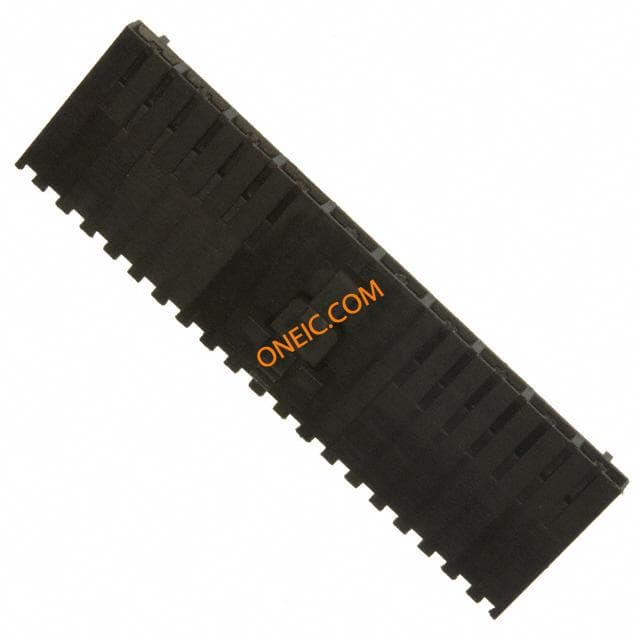

50-57-9420
