87439-1000
| Manufacturer | |
| Description | CONN HOUSING 10POS 1.5MM W/RAMP Housing 1.50mm Pico-SPOX, 10w,Off-White Headers & Wire Housings 10 CKT 1.5mm HSG. Vertical Conn Housing F 10 POS 1.5mm Crimp ST Cable Mount Bag HOUSING, PICO-SPOX, 10WAY Molex PICO-SPOX 系列 1.5mm 节距 10 路 直 母 电缆安装 压接连接器外壳 |
| Category |
商业参数
| 商标名 | Pico-SPOX | 零件号别名 | 0874391000 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 20000 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :MOLEX - Pico-SPOX 87439 Series | 最大额定电流 | 3 A |
机械参数
| 颜色 | Natural | 间距 | 0.059" (1.50mm) |
| 宽度 | 3.35mm | 长度 | 16.1mm |
| 重量 | 0.00012 | 材料（通用） | :Nylon 6,6 |
| 包装方式 | Bulk | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 引脚间距 | :1.5mm |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 材料表面处理 | :- | 触头材料 | :- |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Natural |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 87439 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | Pico-SPOX Wire-to-Board Connector |
环境参数
| 工作温度 | :105°C | ||
Documents & Media
相关型号
0874381043
molex
Conn Shrouded Header HDR 10 POS 1.5mm Solder RA SMD Embossed T/R CONN HEADER 10POS 1.5MM R/A SMD
0874210000
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel

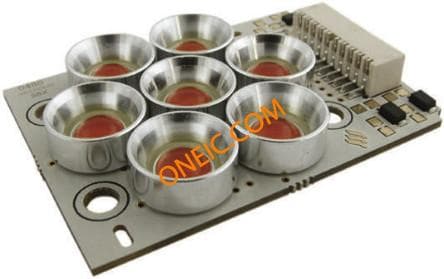

NT-51A0-0468
Lighting Science Group
LED Lighting Modules Red Titan Series LIGHT ENGINE TITAN RED
NT-52C1-0470
Lighting Science Group
LED Lighting Modules Green Titan Series LIGHT ENGINE TITAN GREEN

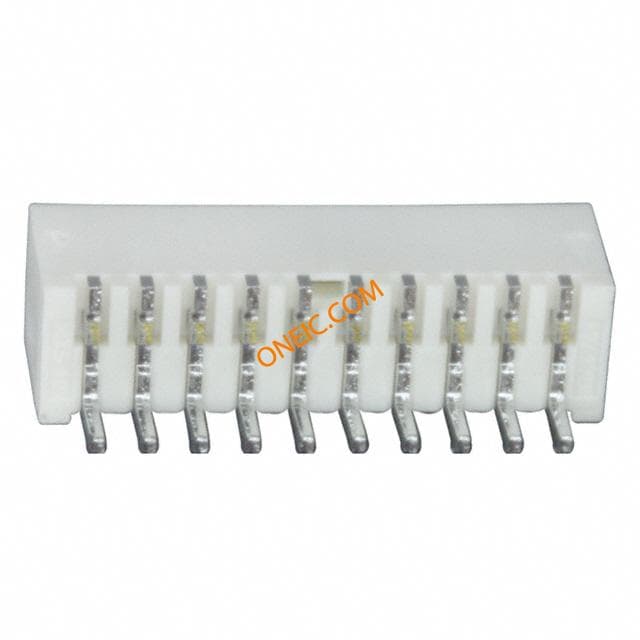

87438-1033
Molex
Headers & Wire Housings 1.5MM HDR R/A SMT 10 CONN HEADER 10POS 1.5MM R/A SMD

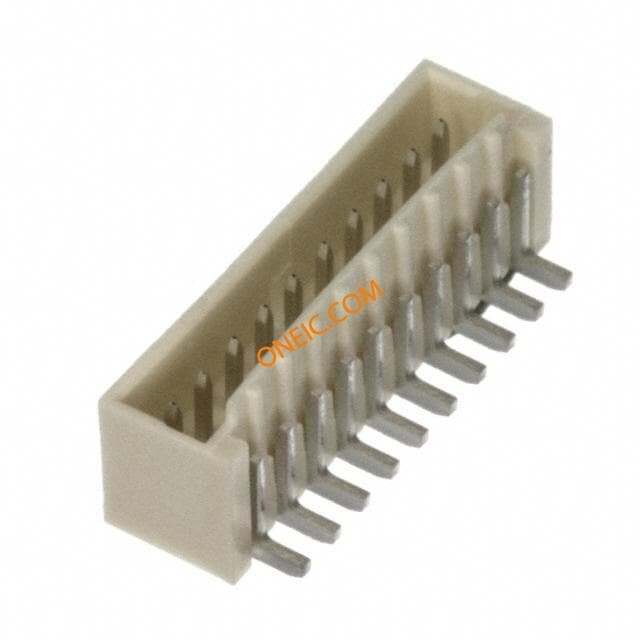

0874371043
