点击放大查看

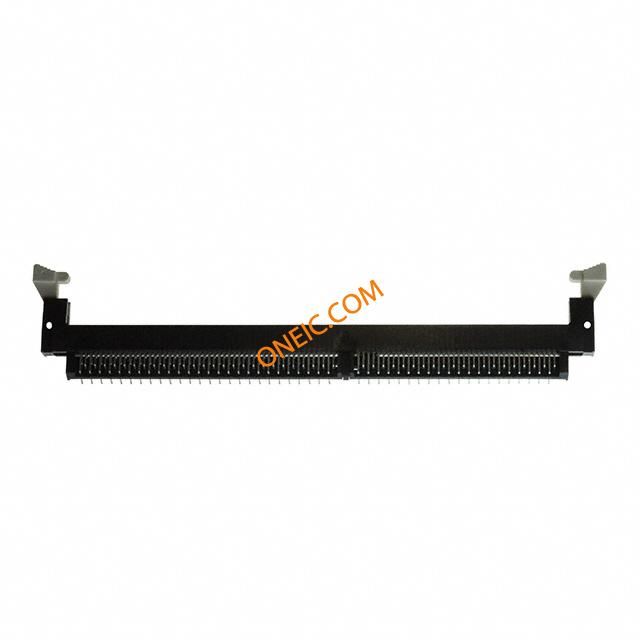

87623-2001
| Manufacturer | |
| Description | CONN SOCKET DIMM 184POS 15 GOLD DIMM Connectors 25 ANGLE 184P With locating pegs Conn DIMM Socket SKT 184 POS 2.54mm Solder Thru-Hole Tray |
| Category |
商业参数
| 零件号别名 | 0876232001 | 产品类别 | DIMM Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 210 |
合规参数
| RoHS | RoHS Compliant | 标准 | MO-206 |
电气参数
| 存储器类型 | DDR SDRAM | 额定电压 | 50 V |
| 最大额定电流 | 1 A | ||
机械参数
| 间距 | 1.27 mm | 包装方式 | Tray |
| 安装类型 | Through Hole, 25° Angle | 接触镀层 | Gold |
| 连接器样式 | DIMM | 触头材料 | Brass, Phosphor Bronze |
| 壳体材料 | Thermoplastic | 端接样式 | Through Hole |
| 触点数 | 184 | 位数 | 184 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | DDR | 系列 | 87623 |
| 产品特性 | Board Guide, Board Lock, Latches | ||
Documents & Media
