90123-0110
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | C-GRID | Part # Aliases | 0901230110 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | ||
Electrical
| Range deg/s | :MOLEX - C-Grid III 90123 Series | Voltage Rating | :350V |
| Contact Resistance | :20mohm | Current Rating (Max) | :3A |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 0.100" (2.54mm) | Width | 3.43mm |
| Length | 25.4mm | Weight | 0.055 |
| Packaging | Bulk | Termination | :Crimp |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | :- |
| Mounting Style | Wire | Number of Rows | 1 |
| Package / Case | :Polyphenylene Oxide UL94V-1 | Contact Material | :- |
| Housing Material | PPO | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 10 |
| Contact Termination | Crimp | Number of Positions | 10 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 90123 | Features | Polarizing Key |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
0901192109
molex
$0.3025
Details
0901190110
molex
$0.7038
Details
0901190109
molex
$0.1068
Details
0901192122
molex
$1.3017
Details
0901190122
molex
$0.8849
Details
0901192120
molex
$0.3331
Details
69008-0003
molex
$372.2320
Details
90119-2111
Molex
$0.5508
Details
90121-0770
molex
$5.3040
Details
90120-0770
molex
$11.9119
Details
69008-0140
molex
$320.2120
Details
90119-2121
molex
$0.3332
Details

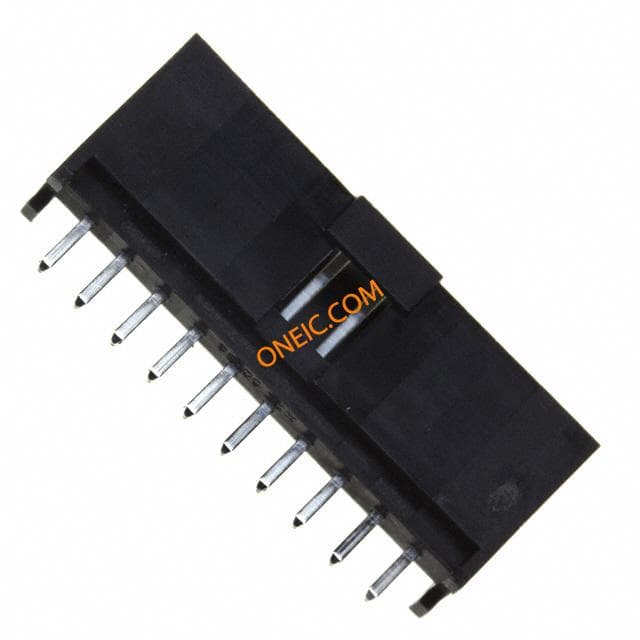

90136-1110
molex
$10.1779
Details

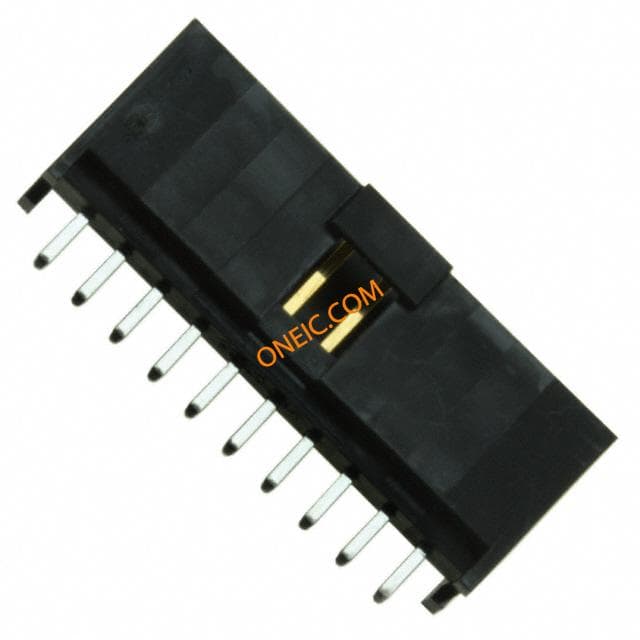

90136-1210
molex
$5.9160
Details
0901192110
Molex
$0.6514
Details
0901192121
Molex
$0.9683
Details
90120-0130
Molex Connector Corporation
$5.2052
Details

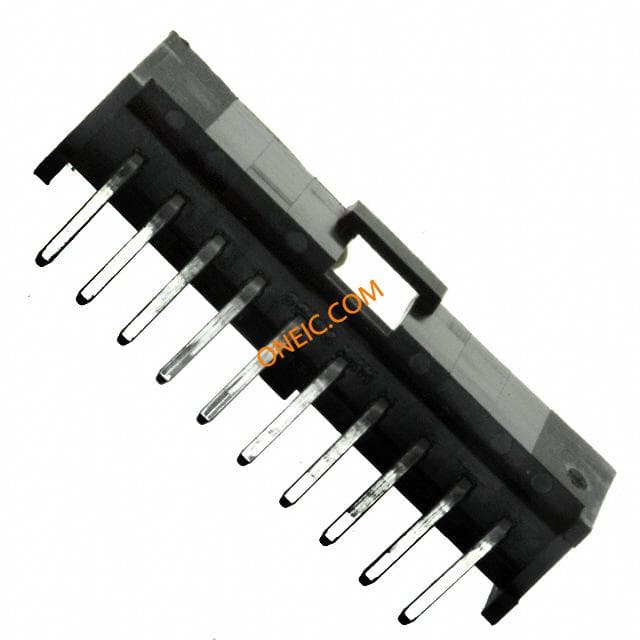

90136-2110
Molex Connector Corporation
$3.8760
Details
90121-0130
Molex Connector Corporation
$3.6720
Details

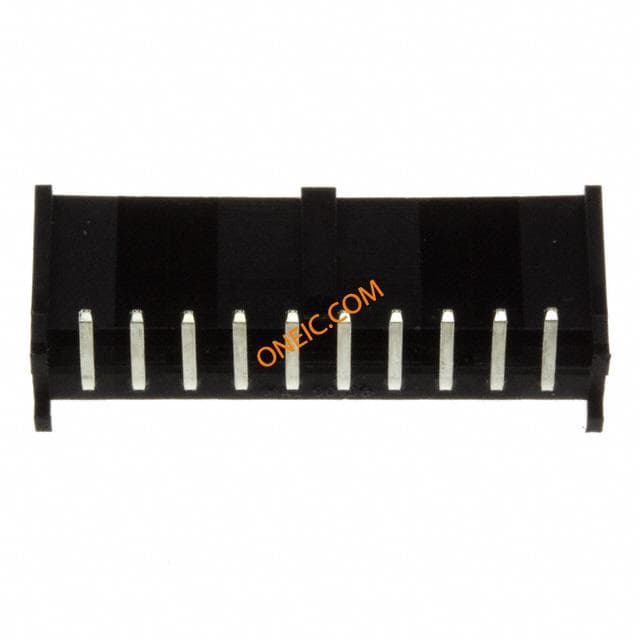

90136-2210
